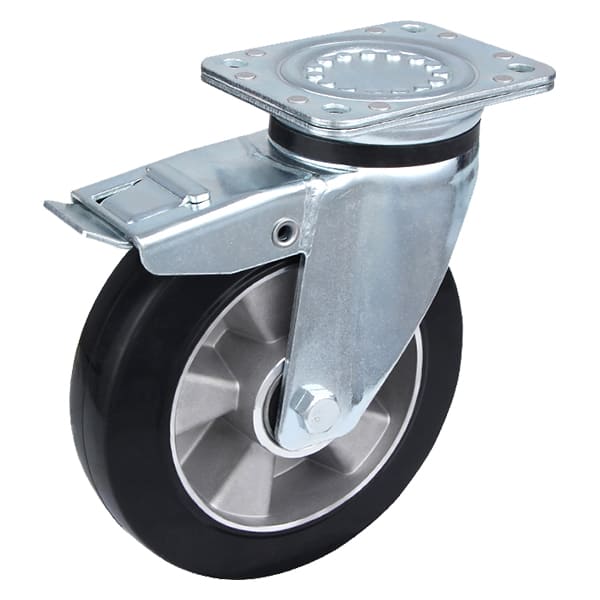

Castor Specifications
Slide to the right to view all castor specifications
Castor Number | Wheel Diameter ( mm ) | Tread of Width ( mm ) | Size of Plate ( mm ) | Plate Hole Center ( mm ) | Plate Hole ( mm ) | Offset ( mm ) | Swivel Radius ( mm ) | Overall Height ( mm ) | Load Capacity ( kg ) |
---|---|---|---|---|---|---|---|---|---|
03P1TB80C38JEADX4015 | 80 | 38 | 105x80 | 80x60 | 11x9 | 40 | 120 | 120 | 180 |
03P1TB100C40JEADX4015 | 100 | 40 | 105x80 | 80x60 | 11x9 | 40 | 120 | 130 | 200 |
03P1TB125C50JEADX6020 | 125 | 50 | 135x110 | 105x80 | 13.5x11 | 50 | 162 | 178 | 270 |
03P1TB150C50JEADX6020 | 150 | 50 | 135x110 | 105x80 | 13.5x11 | 53 | 162 | 210 | 350 |
03P1TB160C50JEADX6020 | 160 | 50 | 135x110 | 105x80 | 13.5x11 | 53 | 162 | 215 | 400 |
03P1TB200C50JEADX6020 | 200 | 50 | 135x110 | 105x80 | 13.5x11 | 55 | 162 | 245 | 500 |
Castor Information
Wheel Tread Material
Elastic rubber
Wheel Centre Material
Aluminium
Castor Housing
Total Brake
Mounting Type
Top Plate
Castor Bearing
Double ball bearings
Temperature Range
-20 to +85°C
Hardness of Tread
68°+5 Shore A
Threadguard
None
Color
Black
Description
Housing
pressed steel fork, zinc-plated hardened and sealed double ball race without central king pin
Wheel
silvery casting-aluminium wheel centre shore a 68+5 black elastic rubber tread, two ball bearings
Applicable Terrain
Tile Floor
Resin Cement Floor
Asphalt Floor
Not Paved
Expanded Metal
Floor With Chips
