Castor Specifications
Slide to the right to view all castor specifications
| Castor Number |  Wheel Diameter ( mm ) |  Tread of Width ( mm ) |  Size of Plate ( mm ) |  Plate Hole Center ( mm ) |  Plate Hole ( mm ) |  Offset ( mm ) |  Swivel Radius ( mm ) |  Overall Height ( mm ) |  Load Capacity ( kg ) |
|---|---|---|---|---|---|---|---|---|---|
| 03P1TB160D46DETDA6212 | 160 | 46 | 135x110 | 105x80 | 13.5x11 | 53 | 162 | 215 | 300 |
| 03P1TB200D46DETDA6212 | 200 | 46 | 135x110 | 105x80 | 13.5x11 | 55 | 162 | 245 | 400 |
Castor Information
Wheel Tread Material
Elastic rubber
Wheel Centre Material
Polyamide
Castor Housing
Total Brake
Mounting Type
Top Plate
Castor Bearing
Double ball bearings
Temperature Range
-20 to +80°C
Hardness of Tread
68°+5 Shore A
Threadguard
Small plastic
Color
Grey

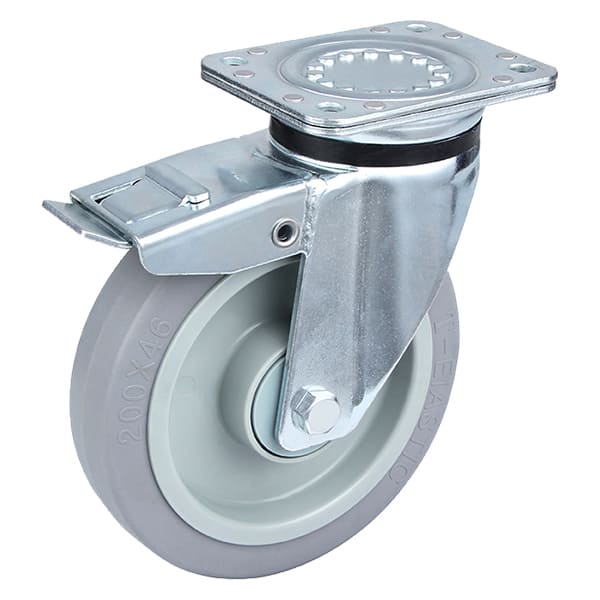

Description
Housing
pressed steel fork, zinc-plated hardened and sealed double ball race without central king pin
Wheel
grey polyamide wheel centreShore a 68+5 grey elastic rubber tread two ball bearings, grey samll plastic thread guards
Applicable Terrain
Tile Floor
Resin Cement Floor
Asphalt Floor
Not Paved
Expanded Metal
Floor With Chips
