Taishan Heavy Duty Blue Elastic Rubber Total Brake Castor Vendor

Castor Specifications

Slide to the right to view all castor specifications

Castor Number	Wheel Diameter & Width of Tread ( mm )	Size of Plate ( mm )	Plate Hole Center ( mm )	Plate Hole ( mm )	Offset ( mm )	Overall Height ( mm )	Load Capacity ( kg 4km/h )
03P1RB80A36CEPDX	80x36	105x80	80x60	11x9	40	120	100
03P1RB100A36CEPDX	100x36	105x80	80x60	11x9	40	130	150
03P1RB125A50CEPDX	125x50	135x110	105x80	13.5x11	50	178	230
03P1RB150A50CEPDX	150x50	135x110	105x80	13.5x11	53	210	280
03P1RB160A50CEPDX	160x50	135x110	105x80	13.5x11	53	215	300
03P1RB200A50CEPDX	200x50	135x110	105x80	13.5x11	55	245	400

Castor Information

Wheel Tread Material

Elastic rubber

Wheel Centre Material

Polyamide

Castor Housing

Total Brake

Mounting Type

Top Plate

Castor Bearing

Double ball bearings

Temperature Range

-20 to +80°C

Hardness of Tread

68°+5 Shore A

Threadguard

None

Color

Blue

Description

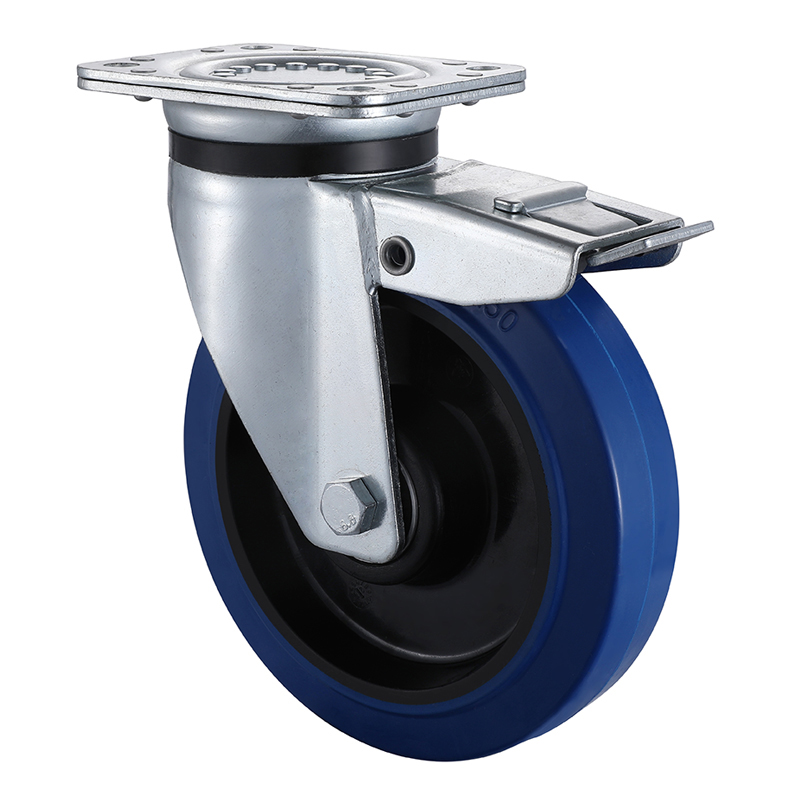

Swivel castor with total brake, housing made of heavy pressed steel, bright zinc plate, precision ball bearing swivel head sealed, wheel axle with nut, plate fitting, castor wheel tread elastic rubber, shore A 68+5, double ball bearings, wheel center made of black nylon, wheel diameter 80mm to 200mm, load capacity 100kg to 400kg. , These industrial castors are durable and designed for use in the most demanding environments.

Applicable Terrain
