Castor Specifications
Slide to the right to view all castor specifications
CastorNumber | Bearing Type | Wheel Diameter & Width of Tread ( mm ) | Size of Plate ( mm ) | Plate Hole Center ( mm ) | Plate Hole ( mm ) | Offset ( mm ) | Overall Height ( mm ) | Load Capacity ( kg 4km/h ) |
---|---|---|---|---|---|---|---|---|
03P1RB80D38AUMRX | 80x38 | 105x80 | 80x60 | 11x9 | 40 | 120 | 180 | |
03P1RB100D40AUMRX | 100x40 | 105x80 | 80x60 | 11x9 | 40 | 130 | 300 | |
03P1RB125D40AUMRX | 125x40 | 135x110 | 105x80 | 13.5x11 | 50 | 178 | 350 | |
03P1RB160D45AUMRX | 160x50 | 135x110 | 105x80 | 13.5x11 | 53 | 215 | 550 | |
03P1RB200D50AUMRX | 200x50 | 135x110 | 105x80 | 13.5x11 | 55 | 245 | 800 |
Castor Information
Wheel Tread Material
Polyurethane
Wheel Centre Material
Polyamide
Castor Housing
Total Brake
Mounting Type
Top Plate
Castor Bearing
Double ball bearings
Temperature Range
-40 to +80°C
Hardness of Tread
92°+3 Shore A
Threadguard
None
Color
Grey
Description

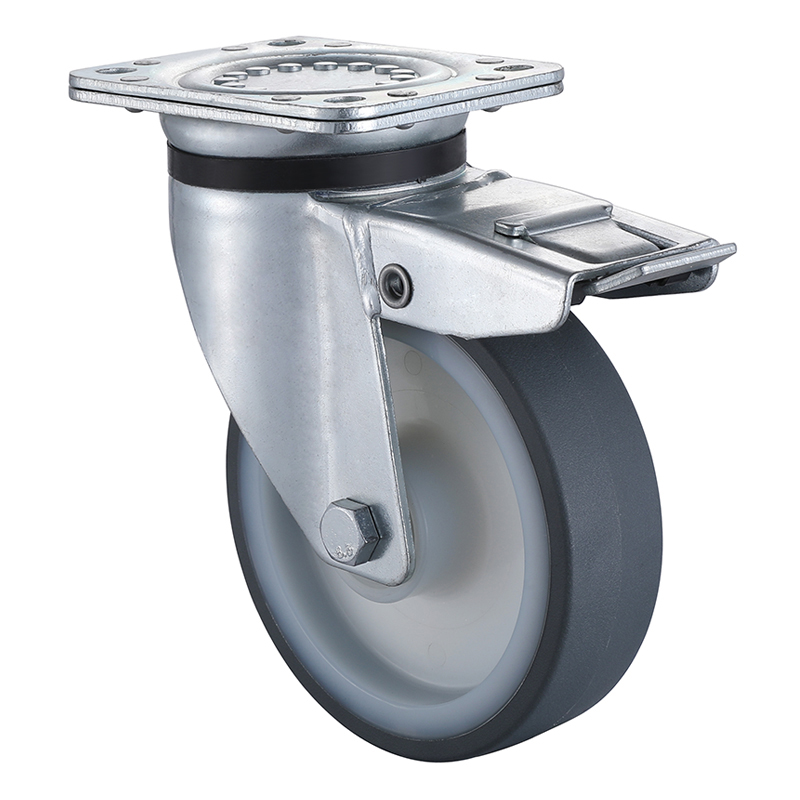

Swivel castors with total brake, housing made of heavy pressed steel, bright zinc plate, precision ball bearing swivel head sealed, wheel axle with nut, plate fitting, castor wheel tread polyurethane, Shore A 85, double ball bearings, wheel center made of nylon, wheel diameter 80mm to 200mm, load capacity 180kg to 800kg. Every user and application has different needs. Let us know how we can help you to become a satisfied customer.
Applicable Terrain
Tile Floor
Resin Cement Floor
