Castor Specifications
Slide to the right to view all castor specifications
| Castor Number |  Wheel Diameter ( mm ) |  Tread of Width ( mm ) |  Size of Plate ( mm ) |  Plate Hole Center ( mm ) |  Plate Hole ( mm ) |  Offset ( mm ) |  Swivel Radius ( mm ) |  Overall Height ( mm ) |  Load Capacity ( kg ) |
|---|---|---|---|---|---|---|---|---|---|
| 03P1FB125H50JUHADX6020 | 125 | 50 | 135x110 | 105x80 | 13.5x11 | 50 | 147 | 178 | 400 |
| 03P1FB160H50JUHADX6020 | 160 | 50 | 135x110 | 105x80 | 13.5x11 | 53 | 147 | 215 | 550 |
| 03P1FB200H50JUHADX6020 | 200 | 50 | 135x110 | 105x80 | 13.5x11 | 55 | 156 | 245 | 700 |
| 03P1FB250H50JUHADX6020 | 250 | 50 | 135x110 | 105x80 | 13.5x11 | 67 | 156 | 297 | 800 |
Castor Information
Wheel Tread Material
Polyurethane
Wheel Centre Material
Aluminium
Castor Housing
Tail Brake
Mounting Type
Top Plate
Castor Bearing
Double ball bearings
Temperature Range
-20 to +60°C
Hardness of Tread
85° Shore A
Threadguard
None
Color
Green

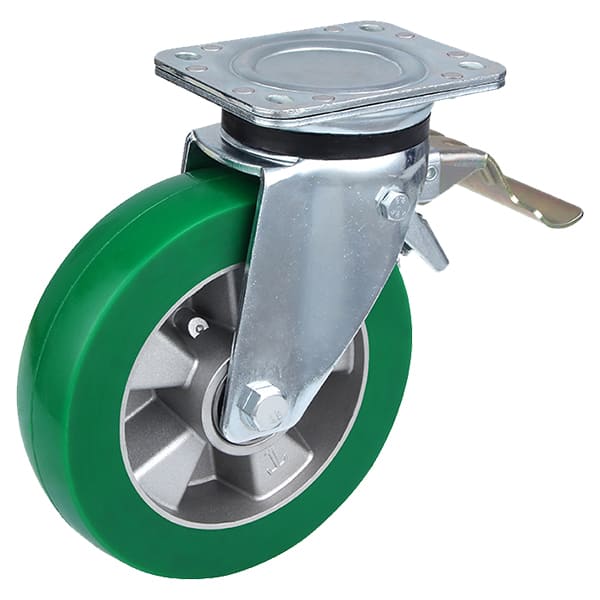

Description
Housing
pressed steel fork,zinc-plated hardened and sealed double ball race without central king pin
Wheel
silvery casting-aluminium wheel centre shore a 85 green elastic polyurethane tread, two ball bearings
Applicable Terrain
Tile Floor
Resin Cement Floor
