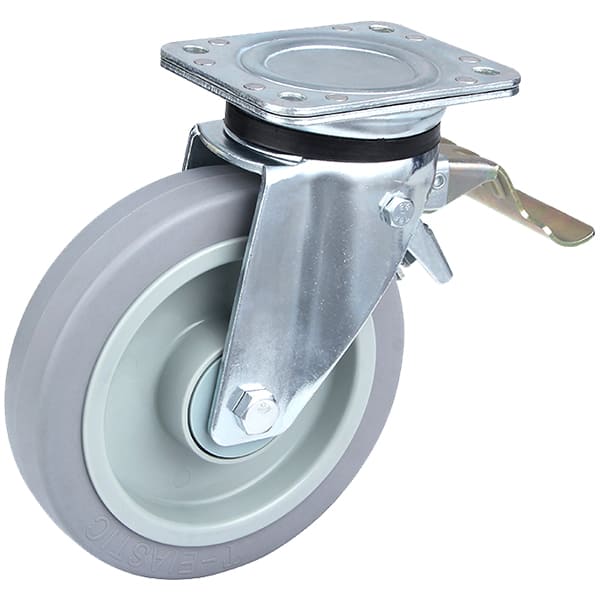

Heavy Duty Grey Elastic Rubber Tail Brake Castor Wheels Taishan Company

Heavy Duty Tails Brakes Castors

You can use the button on the right to contact us for a quote at a good price.Or discuss your needs.

Heavy Duty Grey Elastic Rubber Tail Brake Castor Wheels Taishan Company

You can use the button on the right to contact us for a quote at a good price.Or discuss your needs.

Castor Specifications

Slide to the right to view all castor specifications

Castor
Number

Wheel Diameter

( mm )


Tread of Width

( mm )


Size of Plate

( mm )


Plate Hole Center

( mm )


Plate Hole

( mm )


Offset

( mm )


Swivel Radius

( mm )


Overall Height

( mm )


Load Capacity

( kg )

03P1FB160D46DETDA621216046135x110105x8013.5x1153147215300
03P1FB200D46DETDA621220046135x110105x8013.5x1155156245400

Castor Information

Wheel Tread Material

Elastic rubber

Wheel Centre Material

Polyamide

Castor Housing

Tail Brake

Mounting Type

Top Plate

Castor Bearing

Double ball bearings

Temperature Range

-20 to +80°C

Hardness of Tread

68°+5 Shore A

Threadguard

Small plastic

Color

Grey

Description

Housing

pressed steel fork, zinc-plated hardened and sealed double ball race without central king pin


Wheel

grey polyamide wheel centreShore a 68+5 grey elastic rubber tread two ball bearings, grey samll plastic thread guards

Applicable Terrain

Tile Floor

Tile Floor

Resin Cement Floor

Resin Cement Floor

Asphalt Floor

Asphalt Floor

Not Paved

Not Paved

Expanded Metal

Expanded Metal

Floor With Chips

Floor With Chips

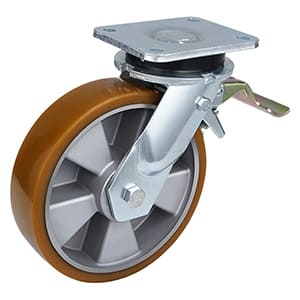

Castors That You May Be Interested In
