Castor Specifications
Slide to the right to view all castor specifications
| Castor Number |  Wheel Diameter ( mm ) |  Tread of Width ( mm ) |  Size of Plate ( mm ) |  Plate Hole Center ( mm ) |  Plate Hole ( mm ) |  Offset ( mm ) |  Swivel Radius ( mm ) |  Overall Height ( mm ) |  Load Capacity ( kg ) |
|---|---|---|---|---|---|---|---|---|---|
| 23P1FB150H40DUPDA6212 | 150 | 40 | 135x110 | 105x80 | 13.5x11 | 57 | 148.5 | 200 | 300 |
| 23P1FB160H40DUPDA6212 | 160 | 40 | 135x110 | 105x80 | 13.5x11 | 57 | 148.5 | 205 | 350 |
| 23P1FB200H50DUPDA6212 | 200 | 50 | 135x110 | 105x80 | 13.5x11 | 65 | 148.5 | 245 | 450 |

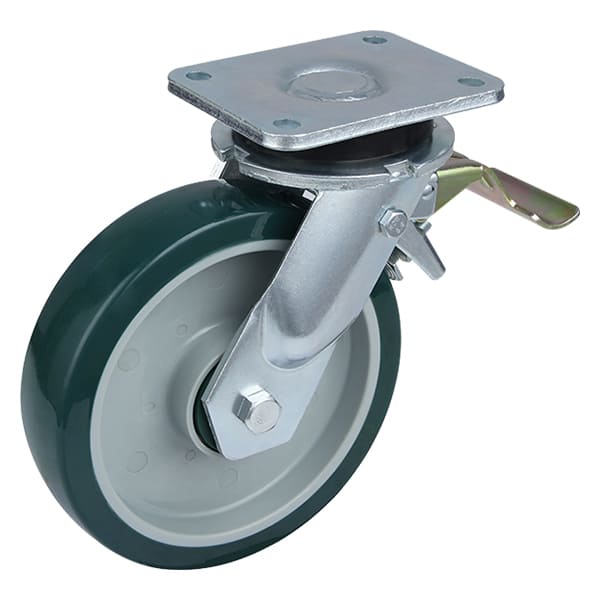

Castor Information
Wheel Tread Material
Polyurethane
Wheel Centre Material
Polyamide
Castor Housing
Tail Brake
Mounting Type
Top Plate
Castor Bearing
Double ball bearings
Temperature Range
-20 to +60°C
Hardness of Tread
92°+3 Shore A
Threadguard
Small plastic
Color
Green
Description
Housing
swivel head with tapered roller bearing and axial ball bearing, welded steel fork
Wheel
grey polyamide wheel centre shore a 92 green injection polyurethane tread two ball bearings, green samll plastic thread guards
Applicable Terrain
Tile Floor
Resin Cement Floor
