Castor Specifications
Slide to the right to view all castor specifications
| CastorNumber |  Bearing Type |   Wheel Diameter & Width of Tread ( mm ) |  Size of Plate ( mm ) |  Plate Hole Center ( mm ) |  Plate Hole ( mm ) |  Offset ( mm ) |  Overall Height ( mm ) |  Load Capacity ( kg 4km/h ) |
|---|---|---|---|---|---|---|---|---|
| 23P1FB125C50JEADX |  | 125x50 | 135x110 | 105x80 | 13.5x11 | 50 | 170 | 230 |
| 23P1FB150C50JEADX | | 150x50 | 135x110 | 105x80 | 13.5x11 | 57 | 200 | 280 |
| 23P1FB160C50JEADX | | 160x50 | 135x110 | 105x80 | 13.5x11 | 57 | 205 | 300 |
| 23P1FB200C50JEADX | | 200x50 | 135x110 | 105x80 | 13.5x11 | 65 | 245 | 400 |
| 23P1FB250C50JEADX | | 250x50 | 135x110 | 105x80 | 13.5x11 | 80 | 305 | 550 |
Castor Information
Wheel Tread Material
Elastic rubber
Wheel Centre Material
Aluminium
Castor Housing
Tail Brake
Mounting Type
Top Plate
Castor Bearing
Double ball bearings
Temperature Range
-20 to +80°C
Hardness of Tread
68°+5 Shore A
Threadguard
None
Color
Black
Description

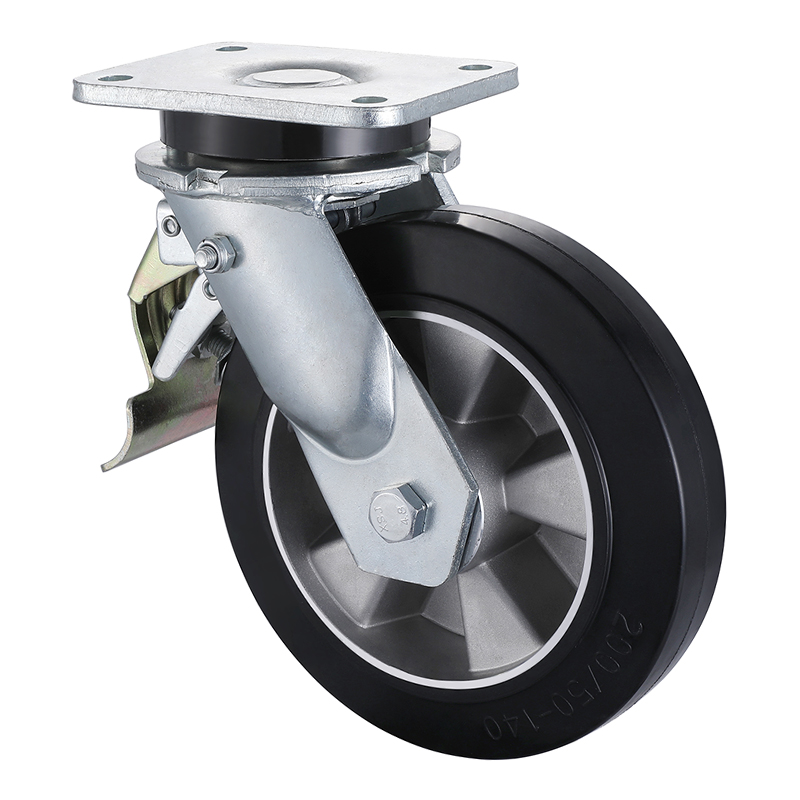

Swivel castor with tail brake, housing made of heavy pressed steel, bright zinc plate, precision ball bearing swivel head sealed, wheel axle with nut, plate fitting, castor wheel tread elastic rubber, shore A 68+5, double ball bearings, wheel center made of aluminum, wheel diameter 125mm to 250mm, load capacity 230kg to 550kg. Applications: Industrial carts, material handling in factories, waste containers, transport containers, metal working and chemical companies, medium load roll containers, tool trolleys, warehouse carts.
Applicable Terrain
Tile Floor
Resin Cement Floor
Asphalt Floor
Not Paved
Expanded Metal
Floor With Chips
