Excellent Quality Heavy Weight White Nylon Tail Brake Castors Manufacturer

Castor Specifications

Slide to the right to view all castor specifications

CastorNumber	Wheel Diameter & Width of Tread ( mm )	Size of Plate ( mm )	Plate Hole Center ( mm )	Plate Hole ( mm )	Offset ( mm )	Overall Height ( mm )	Load Capacity ( kg 4km/h )
23P1FB125B50BPHDX	125x50	135x110	105x80	13.5x11	50	170	700
23P1FB150B50BPHDX	150x50	135x110	105x80	13.5x11	57	200	800
23P1FB160B50BPHDX	160x50	135x110	105x80	13.5x11	57	205	850
23P1FB200B50BPHDX	200x50	135x110	105x80	13.5x11	65	245	1000
23P1FB250B50BPHDX	250x50	135x110	105x80	13.5x11	80	305	1500

Castor Information

Wheel Tread Material

Nylon

Wheel Centre Material

Polyamide

Castor Housing

Tail Brake

Mounting Type

Top Plate

Castor Bearing

Double ball bearings

Temperature Range

-40 to +80°C

Hardness of Tread

75° Shore D

Threadguard

None

Color

White

Description

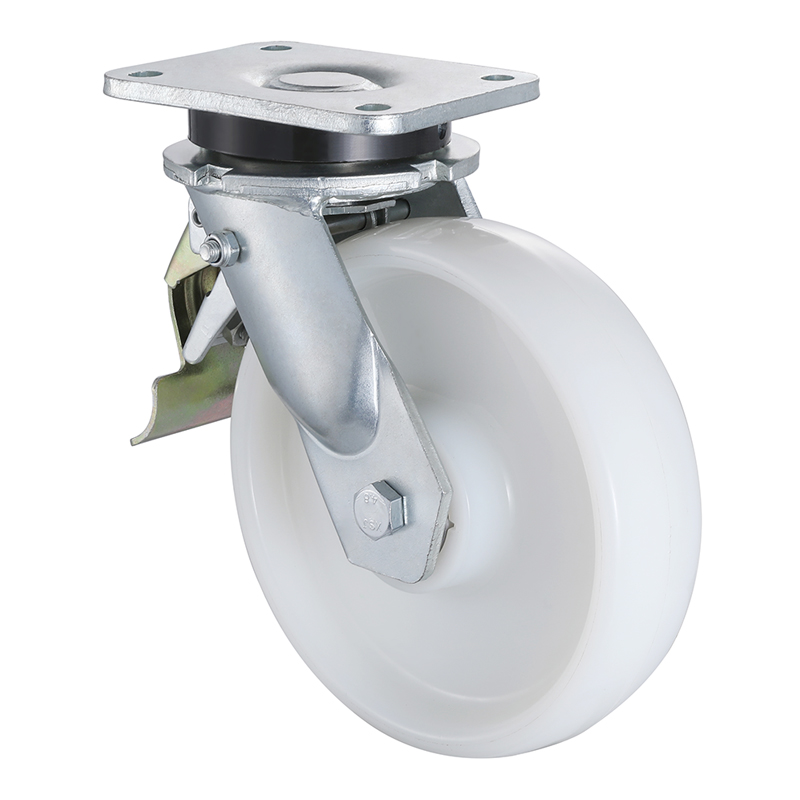

Swivel castors with total brake, housing made of heavy pressed steel, bright zinc plate, precision ball bearing swivel head sealed, wheel axle with nut, plate fitting, castor wheel tread nylon, Shore D 75, temperature range -40°C to +80°C, double ball bearings, wheel diameter 125mm to 250mm, load capacity 700kg to 1500kg. These industrial castors are durable and designed for use in the most demanding environments.
