Excellent Quality Heavy Weight Casting Nylon Tail Brake Castors from Taishan Manufacturer

Heavy Duty Tail Brake Castors Series

You can use the button on the right to contact us for a quote at a good price.Or discuss your needs.

Excellent Quality Heavy Weight Casting Nylon Tail Brake Castors from Taishan Manufacturer

You can use the button on the right to contact us for a quote at a good price.Or discuss your needs.

Castor Specifications

Slide to the right to view all castor specifications

CastorNumberwheel bearing

Bearing Type

size-diameter.jpg size-tread-width.jpg

Wheel Diameter & Width of Tread

( mm )


Size of Plate

( mm )


Plate Hole Center

( mm )


Plate Hole

( mm )


Offset

( mm )


Overall Height

( mm )


Load Capacity

( kg 4km/h )

23P1FB100B50BPCDXdoubles ball bearing100x50135x110105x8013.5x11421481400
23P1FB125B50BPCDXdoubles ball bearing125x50135x110105x8013.5x11501702000
23P1FB150B50BPCDXdoubles ball bearing150x50135x110105x8013.5x11572002000
23P1FB160B50BPCDXdoubles ball bearing160x50135x110105x8013.5x11572052000
23P1FB200B50BPCDXdoubles ball bearing200x50135x110105x8013.5x11652452000
23P1FB250B50BPCDXdoubles ball bearing250x50135x110105x8013.5x11803052000

Castor Information

Wheel Tread Material

Nylon

Wheel Centre Material

Polyamide

Castor Housing

Tail Brake

Mounting Type

Top Plate

Castor Bearing

Double ball bearings

Temperature Range

-40 to +80°C

Hardness of Tread

75° Shore D

Threadguard

None

Color

White

Description

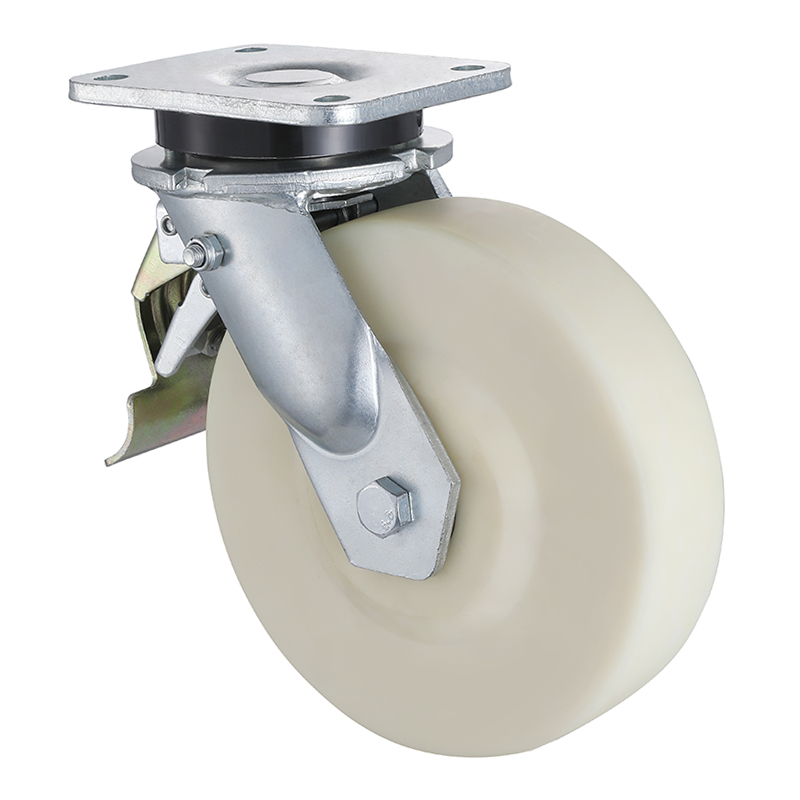

Swivel castors with total brake, housing made of heavy pressed steel, bright zinc plate, precision ball bearing swivel head sealed, wheel axle with nut, plate fitting, castor wheel tread casting nylon, Shore D 75, temperature range -40°C to +80°C, double ball bearings, wheel diameter 100mm to 250mm, load capacity 1400kg to 2000kg. This heavy duty castor is perfect for mounting on high duty carts or equipment,  industrial trolleys,  material handling carts,  shipping containers,  metalworking equipment,  tool carts,  warehouse trolleys,  contact a sales manager right away for a discounted price.

Applicable Terrain

Tile Floor

Tile Floor

Resin Cement Floor

Resin Cement Floor
