Castor Specifications
Slide to the right to view all castor specifications
| Castor Number |  Wheel Diameter ( mm ) |  Tread of Width ( mm ) |  Size of Plate ( mm ) |  Plate Hole Center ( mm ) |  Plate Hole ( mm ) |  Offset ( mm ) |  Overall Height ( mm ) |  Load Capacity ( kg ) |
|---|---|---|---|---|---|---|---|---|
| 23P1S100A50CEPDX6015 | 100 | 50 | 135x110 | 105x80 | 13.5x11 | 42 | 148 | 240 |
| 23P1S125A50CEPDX6020 | 125 | 50 | 135X110 | 105X80 | 13.5X11 | 50 | 170 | 270 |
| 23P1S150A50CEPDX6020 | 150 | 50 | 135X110 | 105X80 | 13.5X11 | 57 | 200 | 300 |
| 23P1S160A50CEPDX6020 | 160 | 50 | 135X110 | 105X80 | 13.5X11 | 57 | 205 | 350 |
| 23P1S200A50CEPDX6020 | 200 | 50 | 135x110 | 105x80 | 13.5x11 | 65 | 245 | 400 |
| 23P1S250A50CEPDX6020 | 250 | 50 | 135x110 | 105x80 | 13.5x11 | 80 | 305 | 550 |
Castor Information
Wheel Tread Material
Elastic rubber
Wheel Centre Material
Polyamide
Castor Housing
Swivel
Mounting Type
Top Plate
Castor Bearing
Double ball bearings
Temperature Range
-20 to +60°C
Hardness of Tread
68°+5 Shore A
Threadguard
None
Color
Blue

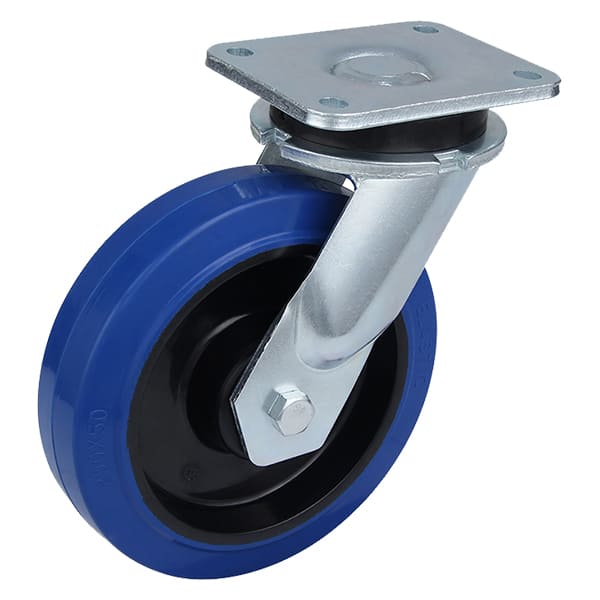

Description
Housing
swivel head with tapered roller bearing and axial ball bearing, welded steel fork
Wheel
black polyamide wheel centre shore a 68+5 blue elastic rubber tread, two ball bearing
Applicable Terrain
Tile Floor
Resin Cement Floor
Asphalt Floor
Not Paved
Expanded Metal
Floor With Chips
