Load capacity 300-1500kg, suitable for heavy equipment.
Multiple sizes, ideal for a variety of industrial applications.
Diameter 75-125mm, suitable for indoor smooth floor.
Aceitamos todos os desafios e as suas necessidades são a nossa principal prioridade.
Large size 260mm, load capacity 150kg, suitable for outdoor cart.
Specially designed for shopping carts with multiple braking options.
Specially designed for hot environment applications up to 250°C.
Resistant to most chemicals, oils, greases, solvents and cleaning.
Wheel Tread
Elastic rubber
Temperature
-20 to +80°C
Standard
EN 12532
Hardness of Tread
68°+5 Shore A

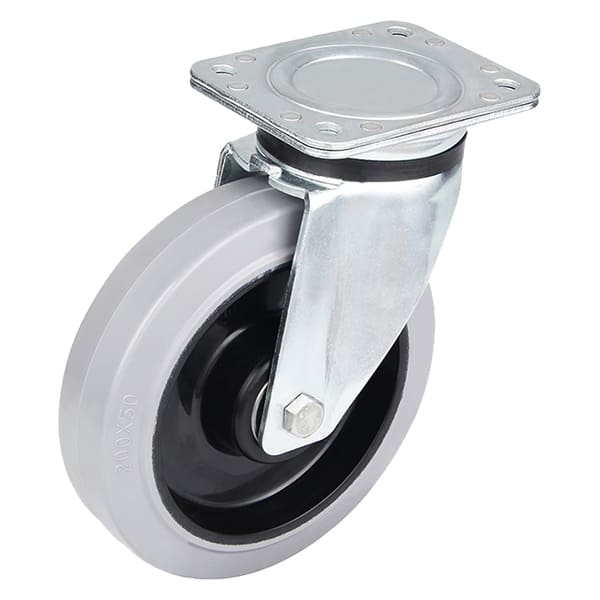

Castor Description
Housing
pressed steel fork, zinc-plated hardened and sealed double ball race without central king pin
Wheel
black polyamide wheel centre shore a 68+5 grey elastic rubber tread, two ball bearings
You can use the button on the right to contact us for a quote at a good price.Or discuss your needs.
Swipe right to see the full table
| Castor Number |  Wheel Diameter ( mm ) |  Tread of Width ( mm ) |  Size of Plate ( mm ) |  Plate Hole Center ( mm ) |  Plate Hole ( mm ) |  Offset ( mm ) |  Overall Height ( mm ) |  Load Capacity ( kg ) |
|---|---|---|---|---|---|---|---|---|
| 03P1S80D36CEPDX4015 | 80 | 36 | 105x80 | 80x60 | 11x9 | 40 | 120 | 150 |
| 03P1S100D36CEPDX4015 | 100 | 36 | 105x80 | 80x60 | 11x9 | 40 | 130 | 200 |
| 03P1S125D50CEPDX6020 | 125 | 50 | 135x110 | 105x80 | 13.5x11 | 50 | 178 | 250 |
| 03P1S150D50CEPDX6020 | 150 | 50 | 135x110 | 105x80 | 13.5x11 | 53 | 210 | 350 |
| 03P1S160D50CEPDX6020 | 160 | 50 | 135x110 | 105x80 | 13.5x11 | 53 | 215 | 400 |
| 03P1S200D50CEPDX6020 | 200 | 50 | 135x110 | 105x80 | 13.5x11 | 55 | 245 | 500 |
| 03P1S250D50CEPDX6020 | 250 | 50 | 135x110 | 105x80 | 13.5x11 | 57 | 297 | 650 |
Tile Floor
Resin Cement Floor
Asphalt Floor
Not Paved
Expanded Metal
Floor With Chips
