Heavy Industrial Elastic Polyurethane Swivel Castor Wheels for Trucks

Heavy Duty Swivel Castors

You can use the button on the right to contact us for a quote at a good price.Or discuss your needs.

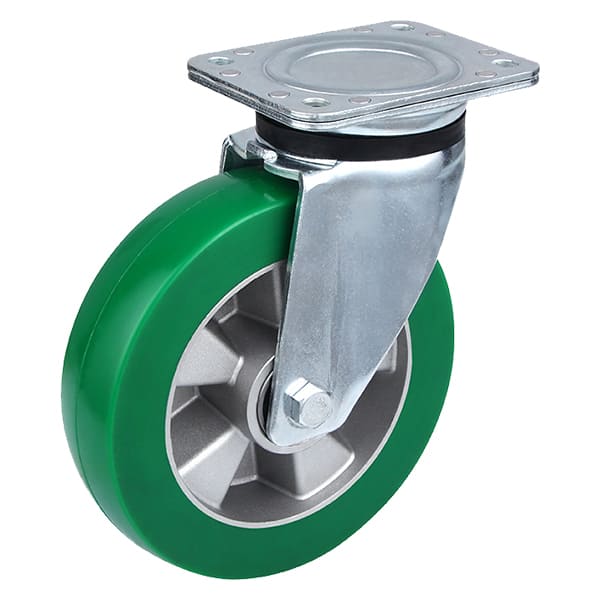

Heavy Industrial Elastic Polyurethane Swivel Castor Wheels for Trucks

You can use the button on the right to contact us for a quote at a good price.Or discuss your needs.

Castor Specifications

Slide to the right to view all castor specifications

Castor
Number

Wheel Diameter

( mm )


Tread of Width

( mm )


Size of Plate

( mm )


Plate Hole Center

( mm )


Plate Hole

( mm )


Offset

( mm )


Overall Height

( mm )


Load Capacity

( kg )

03P1S80H38JUHADX40158038105x8080x6011x940120180
03P1S100H40JUHADX401510040105x8080x6011x940130250
03P1S125H50JUHADX602012550135x110105x8013.5x1150178400
03P1S160H50JUHADX602016050135x110105x8013.5x1153215550
03P1S200H50JUHADX602020050135x110105x8013.5x1155245700
03P1S250H50JUHADX602025050135x110105x8013.5x1167297800

Castor Information

Wheel Tread Material

Polyurethane

Wheel Centre Material

Aluminium

Castor Housing

Swivel

Mounting Type

Top Plate

Castor Bearing

Double ball bearings

Temperature Range

-20 to +60°C

Hardness of Tread

85° Shore A

Threadguard

None

Color

Green

Description

Housing

pressed steel fork,zinc-plated hardened and sealed double ball race without central king pin


Wheel

silvery casting-aluminium wheel centre shore a 85 green elastic polyurethane tread, two ball bearings


Applicable Terrain

Tile Floor

Tile Floor

Resin Cement Floor

Resin Cement Floor
