Wheel Tread
Elastic rubber
Temperature
-20 to +80°C
Standard
EN 12532
Hardness of Tread
68°+5 Shore A

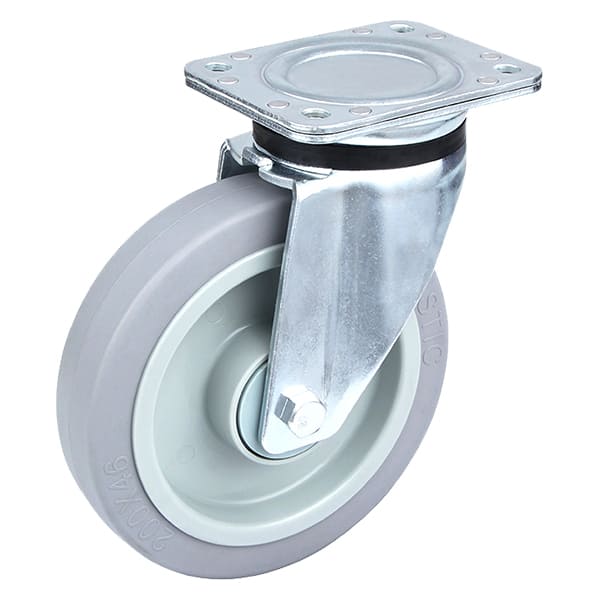

Castor Description
Housing
pressed steel fork, zinc-plated hardened and sealed double ball race without central king pin
Wheel
grey polyamide wheel centreShore a 68+5 grey elastic rubber tread two ball bearings, grey samll plastic thread guards
You can use the button on the right to contact us for a quote at a good price.Or discuss your needs.
Swipe right to see the full table
Castor Number | ![]() Wheel Diameter ( mm ) | ![]() Tread of Width ( mm ) | ![]() Size of Plate ( mm ) | ![]() Plate Hole Center ( mm ) | ![]() Plate Hole ( mm ) | ![]() Offset ( mm ) | ![]() Overall Height ( mm ) | ![]() Load Capacity ( kg ) |
---|---|---|---|---|---|---|---|---|
03P1S160D46DETDA6212 | 160 | 46 | 135x110 | 105x80 | 13.5x11 | 53 | 215 | 300 |
03P1S200D46DETDA6212 | 200 | 46 | 135x110 | 105x80 | 13.5x11 | 55 | 245 | 400 |
Tile Floor
Resin Cement Floor
Asphalt Floor
Not Paved
Expanded Metal
Floor With Chips
