Top Heavy Weight Elastic Rubber Swivel Castors Factory

Castor Specifications

Slide to the right to view all castor specifications

CastorNumber	Wheel Diameter & Width of Tread ( mm )	Size of Plate ( mm )	Plate Hole Center ( mm )	Plate Hole ( mm )	Offset ( mm )	Overall Height ( mm )	Load Capacity ( kg 4km/h )
23P1S160C50CEIDX	160x50	135x110	105x80	13.5x11	57	205	450
23P1S200C50CEIDX	200x50	135x110	105x80	13.5x11	65	245	550
23P1S250C50CEIDX	250x50	135x110	105x80	13.5x11	80	305	650
23P1S260C80CEIDX	250x80	135x110	105x80	13.5x11	80	305	1000

Castor Information

Wheel Tread Material

Elastic rubber

Wheel Centre Material

Iron

Castor Housing

Swivel

Mounting Type

Top Plate

Castor Bearing

Double ball bearings

Temperature Range

-20 to +80°C

Hardness of Tread

68°+5 Shore A

Threadguard

None

Color

Black

Description

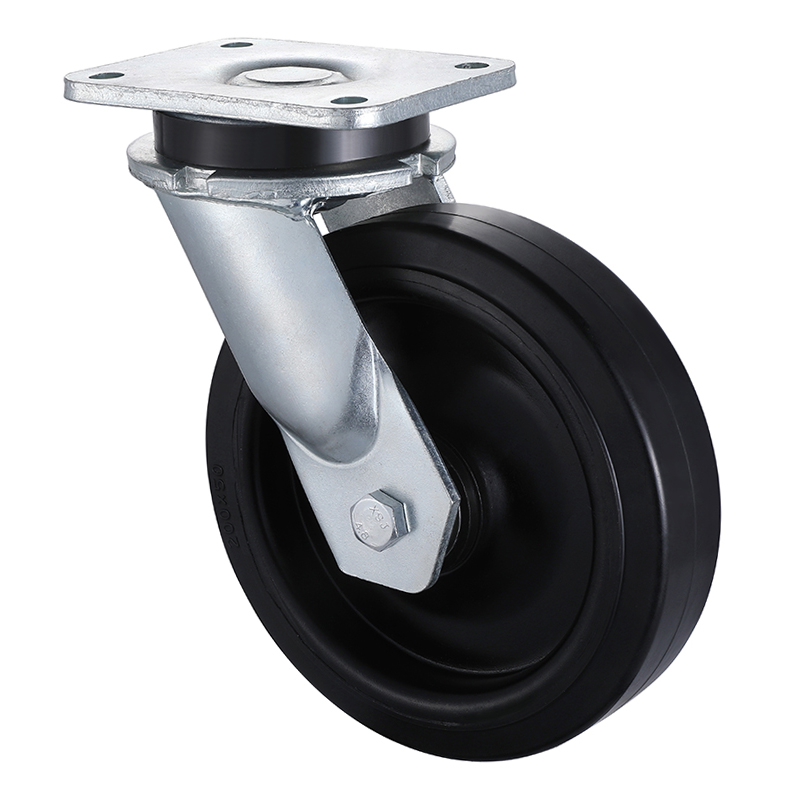

Swivel castor, housing made of heavy pressed steel, bright zinc plate, precision ball bearing swivel head sealed, wheel axle with nut, plate fitting, castor wheel tread Black elastic rubber, shore A 68+5, double ball bearings, wheel center made of casting iron, wheel diameter 160mm to 250mm, load capacity 450kg to 1000kg. Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

Applicable Terrain
