Wheel Tread
Elastic rubber
Temperature
-20 to +80°C
Standard
EN 12532
Hardness of Tread
68°+5 Shore A
Castor Description

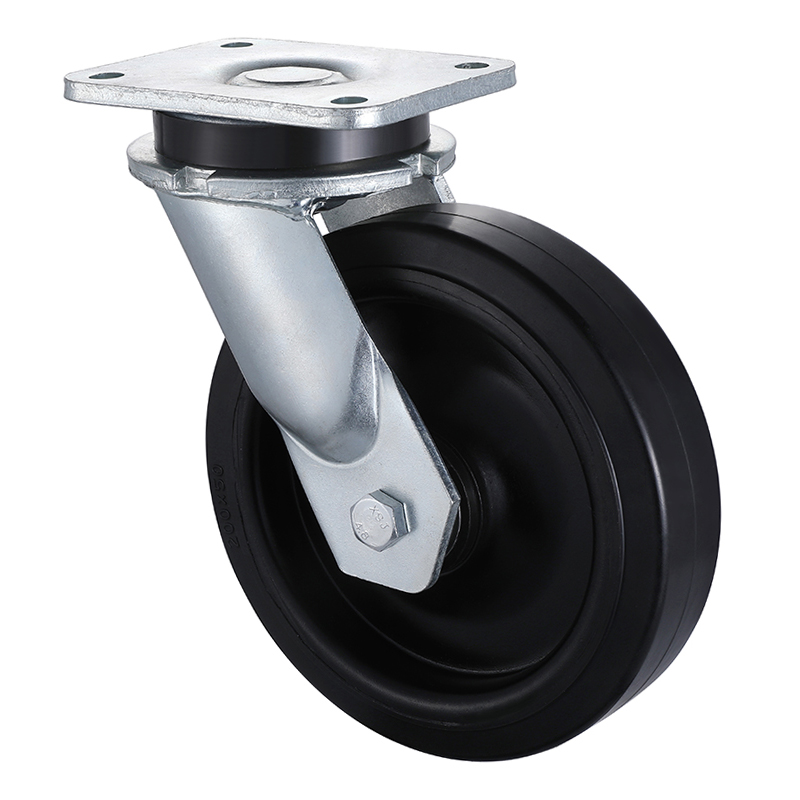

Swivel castor, housing made of heavy pressed steel, bright zinc plate, precision ball bearing swivel head sealed, wheel axle with nut, plate fitting, castor wheel tread elastic rubber, shore A 68+5, double ball bearings, wheel center made of pressed steel, wheel diameter 160mm to 250mm, load capacity 450kg to 1000kg. Every user and application has different needs. Let us know how we can help you to become a satisfied customer.
You can use the button on the right to contact us for a quote at a good price.Or discuss your needs.
Swipe right to see the full table
CastorNumber | ![]() Bearing Type | ![]() ![]() Wheel Diameter & Width of Tread ( mm ) | ![]() Size of Plate ( mm ) | ![]() Plate Hole Center ( mm ) | ![]() Plate Hole ( mm ) | ![]() Offset ( mm ) | ![]() Overall Height ( mm ) | ![]() Load Capacity ( kg 4km/h ) |
---|---|---|---|---|---|---|---|---|
23P1S160C50CESDX | ![]() | 160x50 | 135x110 | 105x80 | 13.5x11 | 57 | 205 | 450 |
23P1S200C50CESDX | ![]() | 200x50 | 135x110 | 105x80 | 13.5x11 | 65 | 245 | 550 |
23P1S250C80CESDX | ![]() | 250x80 | 135x110 | 105x80 | 13.5x11 | 80 | 305 | 1000 |
Tile Floor
Resin Cement Floor
Asphalt Floor
Not Paved
Expanded Metal
Floor With Chips
