Taishan Heavy Duty Nylon Swivel Castors Factory

Castor Specifications

Slide to the right to view all castor specifications

CastorNumber	Wheel Diameter & Width of Tread ( mm )	Size of Plate ( mm )	Plate Hole Center ( mm )	Plate Hole ( mm )	Offset ( mm )	Overall Height ( mm )	Load Capacity ( kg 4km/h )
03P1S100B38BPHDX	100x38	105x80	80x60	11x9	40	130	350
03P1S125B50BPHDX	125x50	135x110	105x80	13.5x11	50	178	700
03P1S150B50BPHDX	150x50	135x110	105x80	13.5x11	53	210	800
03P1S160B50BPHDX	160x50	135x110	105x80	13.5x11	53	215	800
03P1S200B50BPHDX	200x50	135x110	105x80	13.5x11	55	245	800
03P1S250B50BPHDX	250x50	135x110	105x80	13.5x11	67	297	1000

Castor Information

Wheel Tread Material

Nylon

Wheel Centre Material

Polyamide

Castor Housing

Swivel

Mounting Type

Top Plate

Castor Bearing

Double ball bearings

Temperature Range

-40 to +80°C

Hardness of Tread

75° Shore D

Threadguard

None

Color

White

Description

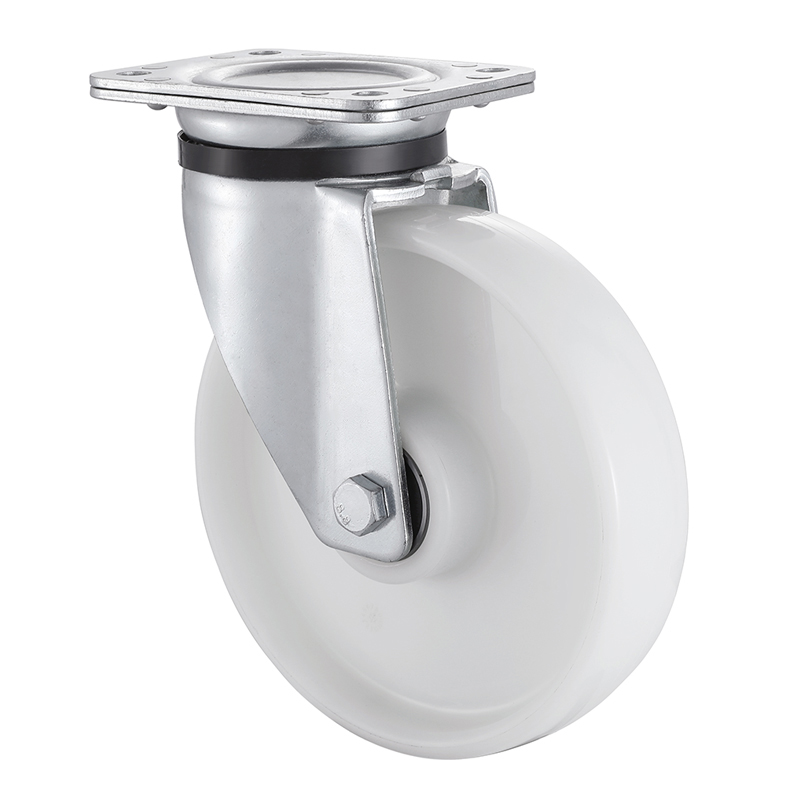

Swivel castors, housing made of heavy pressed steel, bright zinc plate, precision ball bearing swivel head sealed, wheel axle with nut, plate fitting, castor wheel tread nylon, Shore D 75, temperature range -40°C to +80°C, double ball bearings, wheel diameter 100mm to 250mm, load capacity 350kg to 1000kg., Excellent reputation among European customers, excellent quality, outstanding.
