Taishan Heavy Duty Elastic Rubber Swivel Castor from Taishan Manufacturer

Castor Specifications

Slide to the right to view all castor specifications

CastorNumber	Wheel Diameter & Width of Tread ( mm )	Size of Plate ( mm )	Plate Hole Center ( mm )	Plate Hole ( mm )	Offset ( mm )	Overall Height ( mm )	Load Capacity ( kg 4km/h )
03P1S80A36CEPDX	80x36	105x80	80x60	11x9	40	120	100
03P1S100A36CEPDX	100x36	105x80	80x60	11x9	40	130	150
03P1S125A50CEPDX	125x50	135x110	105x80	13.5x11	50	178	230
03P1S150A50CEPDX	150x50	135x110	105x80	13.5x11	53	210	280
03P1S160A50CEPDX	160x50	135x110	105x80	13.5x11	53	215	300
03P1S200A50CEPDX	200x50	135x110	105x80	13.5x11	55	245	400
03P1S250A50CEPDX	250x50	135x110	105x80	13.5x11	67	297	500

Castor Information

Wheel Tread Material

Elastic rubber

Wheel Centre Material

Polyamide

Castor Housing

Swivel

Mounting Type

Top Plate

Castor Bearing

Double ball bearings

Temperature Range

-20 to +80°C

Hardness of Tread

68°+5 Shore A

Threadguard

None

Color

Blue

Description

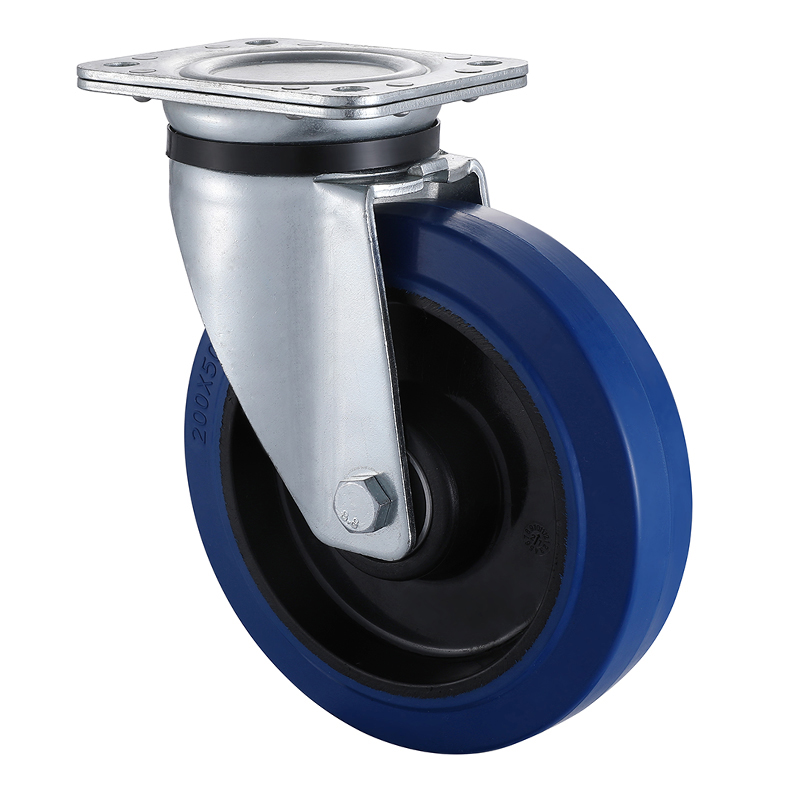

Swivel castor, housing made of heavy pressed steel, bright zinc plate, precision ball bearing swivel head sealed, wheel axle with nut, plate fitting, castor wheel tread elastic rubber, shore A 68+5, double ball bearings, wheel center made of black nylon, wheel diameter 80mm to 250mm, load capacity 100kg to 500kg. , These industrial castors are durable and designed for use in the most demanding environments.

Applicable Terrain
