Industry Leading Heavy Weight Green Elastic Polyurethane Swivel Castor Wheels Supplier

Castor Specifications

Slide to the right to view all castor specifications

CastorNumber	Wheel Diameter & Width of Tread ( mm )	Size of Plate ( mm )	Plate Hole Center ( mm )	Plate Hole ( mm )	Offset ( mm )	Overall Height ( mm )	Load Capacity ( kg 4km/h )
23P1S125H50JUHDX	125x50	135x110	105x80	13.5x11	50	170	320
23P1S150H50JUHDX	150x50	135x110	105x80	13.5x11	57	200	400
23P1S160H50JUHDX	160x50	135x110	105x80	13.5x11	57	205	440
23P1S200H50JUHDX	200x50	135x110	105x80	13.5x11	65	245	560
23P1S250H50JUHDX	250x50	135x110	105x80	13.5x11	80	305	640

Castor Information

Wheel Tread Material

Polyurethane

Wheel Centre Material

Aluminium

Castor Housing

Swivel

Mounting Type

Top Plate

Castor Bearing

Double ball bearings

Temperature Range

-20 to +60°C

Hardness of Tread

85° Shore A

Threadguard

None

Color

Green

Description

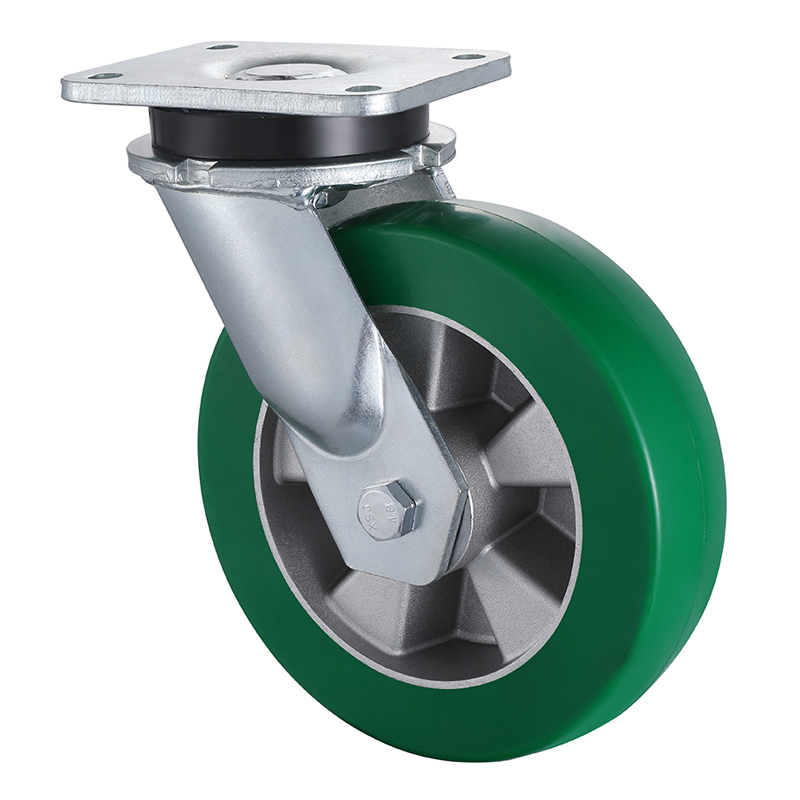

Swivel castors, housing made of heavy pressed steel, bright zinc plate, precision ball bearing swivel head sealed, wheel axle with nut, plate fitting, castor wheel tread polyurethane, Shore A 85, double ball bearings, wheel center made of aluminum, wheel diameter 125mm to 250mm, load capacity 320kg to 640kg. Our quality is creating an easier work-life for the user of the wheel.

Applicable Terrain
