Hight Quality Heavy Duty Green Elastic Polyurethane Swivel Castor Wheels Factory

Castor Specifications

Slide to the right to view all castor specifications

CastorNumber	Wheel Diameter & Width of Tread ( mm )	Size of Plate ( mm )	Plate Hole Center ( mm )	Plate Hole ( mm )	Offset ( mm )	Overall Height ( mm )	Load Capacity ( kg 4km/h )
03P1S80H38JUHDX	80x38	105x80	80x60	11x9	40	120	200
03P1S100H38JUHDX	100x40	105x80	80x60	11x9	40	130	250
03P1S125H40JUHDX	125x40	135x110	105x80	13.5x11	50	178	300
03P1S125H50JUHDX	125x50	135x110	105x80	13.5x11	50	178	320
03P1S150H50JUHDX	150x50	135x110	105x80	13.5x11	53	210	400
03P1S160H50JUHDX	160x50	135x110	105x80	13.5x11	53	215	440
03P1S180H50JUHDX	180x50	135x110	105x80	13.5x11	55	240	500
03P1S200H50JUHDX	200x50	135x110	105x80	13.5x11	55	245	560
03P1S250H50JUHDX	250x50	135x110	105x80	13.5x11	67	297	640

Castor Information

Wheel Tread Material

Polyurethane

Wheel Centre Material

Polyamide

Castor Housing

Swivel

Mounting Type

Top Plate

Castor Bearing

Double ball bearings

Temperature Range

-20 to +60°C

Hardness of Tread

85° Shore A

Threadguard

None

Color

Green

Description

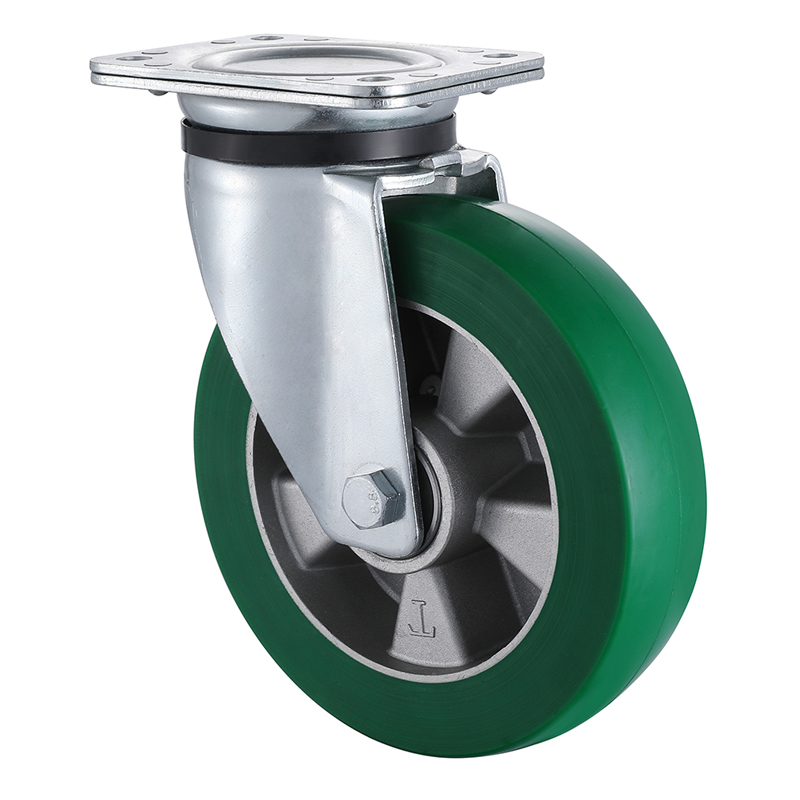

Swivel castors, housing made of heavy pressed steel, bright zinc plate, precision ball bearing swivel head sealed, wheel axle with nut, plate fitting, castor wheel tread green elastic polyurethane, Shore A 85, double ball bearings, wheel center made of aluminum, wheel diameter 80mm to 250mm, load capacity 200kg to 640kg. These industrial castors are durable and designed for use in the most demanding environments.

Applicable Terrain
