Castor Specifications
Slide to the right to view all castor specifications
CastorNumber | Bearing Type | Wheel Diameter & Width of Tread ( mm ) | Size of Plate ( mm ) | Plate Hole Center ( mm ) | Plate Hole ( mm ) | Offset ( mm ) | Overall Height ( mm ) | Load Capacity ( kg 4km/h ) |
---|---|---|---|---|---|---|---|---|
23P1S100B50BPCDX | 100x50 | 135x110 | 105x80 | 13.5x11 | 42 | 148 | 1400 | |
23P1S125B50BPCDX | 125x50 | 135x110 | 105x80 | 13.5x11 | 50 | 170 | 2000 | |
23P1S150B50BPCDX | 150x50 | 135x110 | 105x80 | 13.5x11 | 57 | 200 | 2000 | |
23P1S160B50BPCDX | 160x50 | 135x110 | 105x80 | 13.5x11 | 57 | 205 | 2000 | |
23P1S200B50BPCDX | 200x50 | 135x110 | 105x80 | 13.5x11 | 65 | 245 | 2000 | |
23P1S250B50BPCDX | 250x50 | 135x110 | 105x80 | 13.5x11 | 80 | 305 | 2000 |
Castor Information
Wheel Tread Material
Nylon
Wheel Centre Material
Polyamide
Castor Housing
Swivel
Mounting Type
Top Plate
Castor Bearing
Double ball bearings
Temperature Range
-40 to +80°C
Hardness of Tread
75° Shore D
Threadguard
None
Color
White
Description

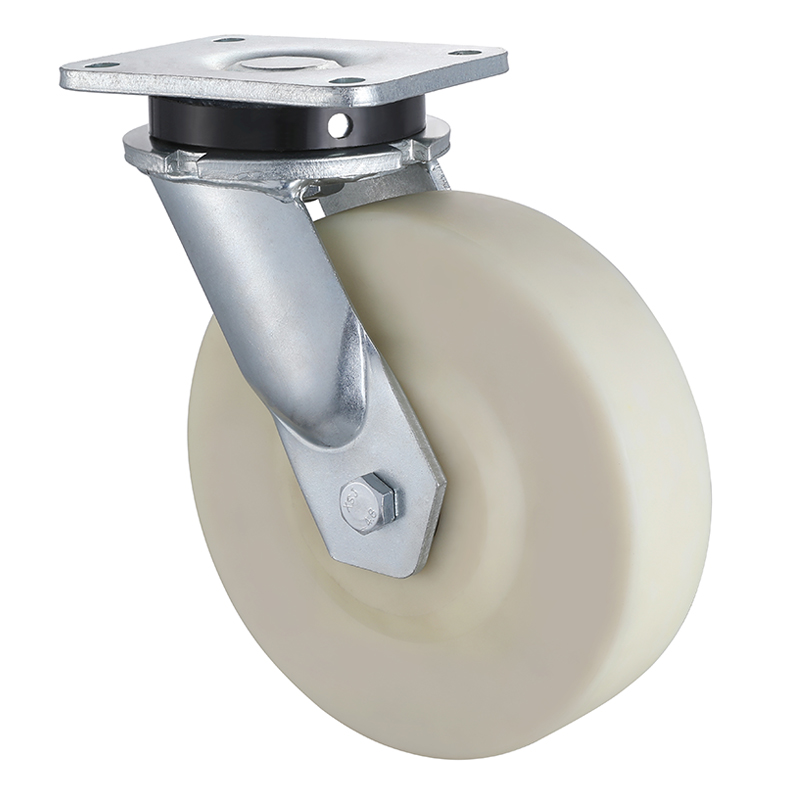

Swivel castors, housing made of heavy pressed steel, bright zinc plate, precision ball bearing swivel head sealed, wheel axle with nut, plate fitting, castor wheel tread casting nylon, Shore D 75, temperature range -40°C to +80°C, double ball bearings, wheel diameter 100mm to 250mm, load capacity 1400kg to 2000kg. This heavy duty castor is perfect for mounting on high duty carts or equipment, industrial trolleys, material handling carts, shipping containers, metalworking equipment, tool carts, warehouse trolleys, contact a sales manager right away for a discounted price.
Applicable Terrain
Tile Floor
Resin Cement Floor
