Best Heavy Weight Black Elastic Rubber Swivel Castor Wholesaler

Castor Specifications

Slide to the right to view all castor specifications

CastorNumber	Wheel Diameter & Width of Tread ( mm )	Size of Plate ( mm )	Plate Hole Center ( mm )	Plate Hole ( mm )	Offset ( mm )	Overall Height ( mm )	Load Capacity ( kg 4km/h )
23P1S125C50JEADX	125x50	135x110	105x80	13.5x11	50	170	230
23P1S150C50JEADX	150x50	135x110	105x80	13.5x11	57	200	280
23P1S160C50JEADX	160x50	135x110	105x80	13.5x11	57	205	300
23P1S200C50JEADX	200x50	135x110	105x80	13.5x11	65	245	400
23P1S250C50JEADX	250x50	135x110	105x80	13.5x11	80	305	550

Castor Information

Wheel Tread Material

Elastic rubber

Wheel Centre Material

Aluminium

Castor Housing

Swivel

Mounting Type

Top Plate

Castor Bearing

Double ball bearings

Temperature Range

-20 to +80°C

Hardness of Tread

68°+5 Shore A

Threadguard

None

Color

Black

Description

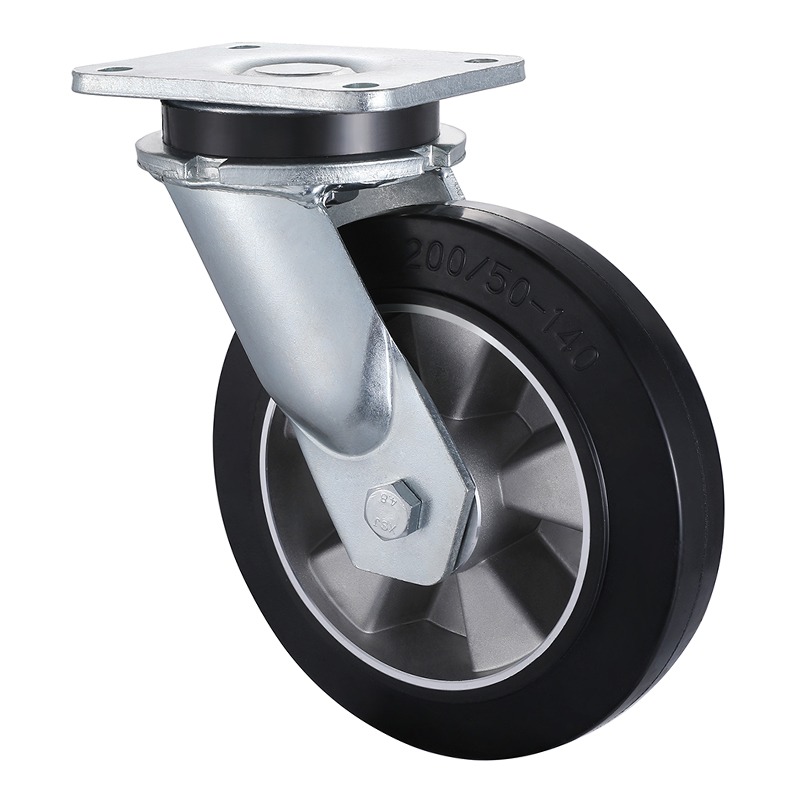

Swivel castor, housing made of heavy pressed steel, bright zinc plate, precision ball bearing swivel head sealed, wheel axle with nut, plate fitting, castor wheel tread elastic rubber, shore A 68+5, double ball bearings, wheel center made of aluminum, wheel diameter 125mm to 250mm, load capacity 230kg to 550kg. Every user and application has different needs. Let us know how we can help you to become a satisfied customer.

Applicable Terrain
