Castor Specifications
Slide to the right to view all castor specifications
| Castor Number |  Wheel Diameter ( mm ) |  Tread of Width ( mm ) |  Size of Plate ( mm ) |  Plate Hole Center ( mm ) |  Plate Hole ( mm ) |  Overall Height ( mm ) |  Load Capacity ( kg ) |
|---|---|---|---|---|---|---|---|
| 03P1F100B38BPADX5015 | 100 | 38 | 105x80 | 80x60 | 11x9 | 130 | 350 |
| 03P1F125B50BPADX6020 | 125 | 50 | 135x110 | 105x80 | 13.5x11 | 178 | 700 |
| 03P1F150B50BPADX6020 | 150 | 50 | 135x110 | 105x80 | 13.5x11 | 210 | 800 |
| 03P1F160B50BPADX6020 | 160 | 50 | 135x110 | 105x80 | 13.5x11 | 215 | 800 |
| 03P1F200B50BPADX6020 | 200 | 50 | 135x110 | 105x80 | 13.5x11 | 245 | 800 |
Castor Information
Wheel Tread Material
Polyamide
Wheel Centre Material
Polyamide
Castor Housing
Fixed
Mounting Type
Top Plate
Castor Bearing
Double ball bearings
Temperature Range
-40 to +80°C
Hardness of Tread
75° Shore D
Threadguard
None
Color
White

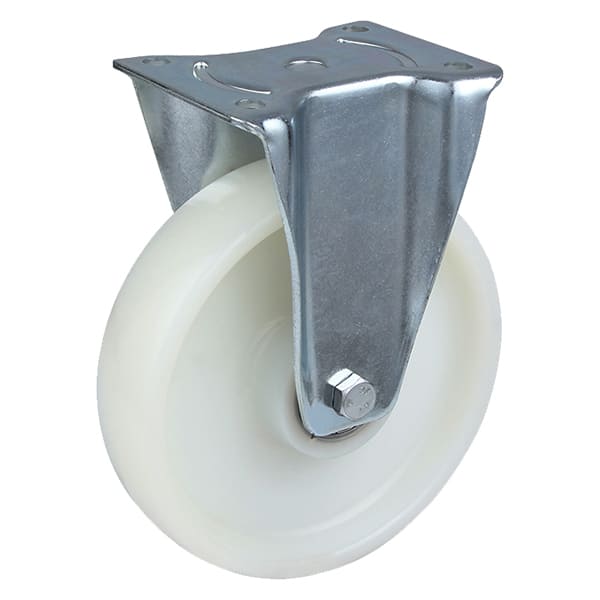

Description
Housing
pressed steel fork, zinc-plated hardened and sealed double ball race without central king pin
Wheel
white injection polyamide, two ball bearings
Applicable Terrain
Tile Floor
Resin Cement Floor
