Castor Specifications
Slide to the right to view all castor specifications
Castor Number | Wheel Diameter ( mm ) | Tread of Width ( mm ) | Size of Plate ( mm ) | Plate Hole Center ( mm ) | Plate Hole ( mm ) | Overall Height ( mm ) | Load Capacity ( kg ) |
---|---|---|---|---|---|---|---|
03P1F100K38CUIDX4512 | 100 | 38 | 105x80 | 80x60 | 11x9 | 130 | 300 |
03P1F125K50CUIDX6020 | 125 | 50 | 135x110 | 105x80 | 13.5x11 | 178 | 450 |
03P1F150K50CUIDX6020 | 150 | 50 | 135x110 | 105x80 | 13.5x11 | 210 | 800 |
03P1F160K50CUIDX6020 | 160 | 50 | 135x110 | 105x80 | 13.5x11 | 215 | 800 |
03P1F200K50CUIDX6020 | 200 | 50 | 135x110 | 105x80 | 13.5x11 | 245 | 800 |
03P1F250K50CUIDX6025 | 250 | 50 | 135x110 | 105x80 | 13.5x11 | 297 | 800 |
Castor Information
Wheel Tread Material
Polyurethane
Wheel Centre Material
Iron
Castor Housing
Fixed
Mounting Type
Top Plate
Castor Bearing
Double ball bearings
Temperature Range
-20 to +60°C
Hardness of Tread
94° Shore A
Threadguard
None
Color
Brwon

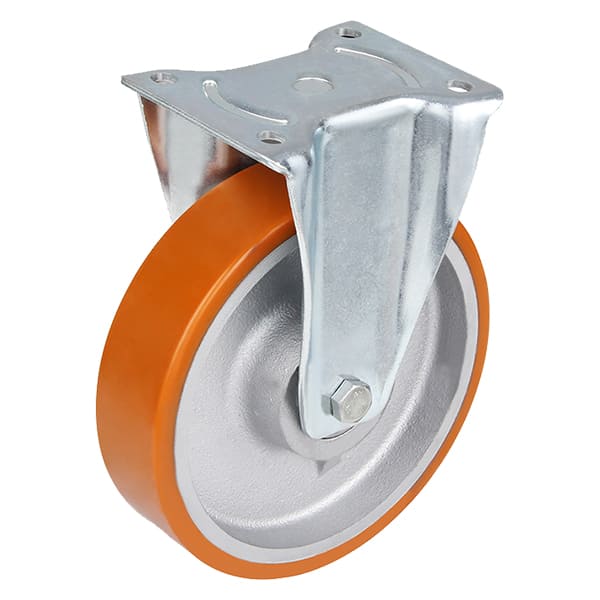

Description
Housing
pressed steel fork,zinc-plated hardened and sealed double ball race without central king pin
Wheel
casting-iron wheel centre 94 shore a brwon polyurethane tread, two ball bearings
Applicable Terrain
Tile Floor
Resin Cement Floor
