Castor Specifications
Slide to the right to view all castor specifications
| Castor Number |  Wheel Diameter ( mm ) |  Tread of Width ( mm ) |  Size of Plate ( mm ) |  Plate Hole Center ( mm ) |  Plate Hole ( mm ) |  Overall Height ( mm ) |  Load Capacity ( kg ) |
|---|---|---|---|---|---|---|---|
| 23P1F100A50CEPDX6015 | 100 | 50 | 135x110 | 105x80 | 13.5x11 | 148 | 240 |
| 23P1F125A50CEPDX6020 | 125 | 50 | 135x110 | 105x80 | 13.5x11 | 170 | 270 |
| 23P1F150A50CEPDX6020 | 150 | 50 | 135x110 | 105x80 | 13.5x11 | 200 | 300 |
| 23P1F160A50CEPDX6020 | 160 | 50 | 135x110 | 105X80 | 13.5X11 | 205 | 350 |
| 23P1F200A50CEPDX6020 | 200 | 50 | 135x110 | 105x80 | 13.5X11 | 245 | 400 |
| 23P1F250A50CEPDX6020 | 250 | 50 | 135x110 | 105x80 | 13.5X11 | 305 | 550 |
Castor Information
Wheel Tread Material
Elastic rubber
Wheel Centre Material
Polyamide
Castor Housing
Fixed
Mounting Type
Top Plate
Castor Bearing
Double ball bearings
Temperature Range
-20 to +60°C
Hardness of Tread
68°+5 Shore A
Threadguard
None
Color
Blue

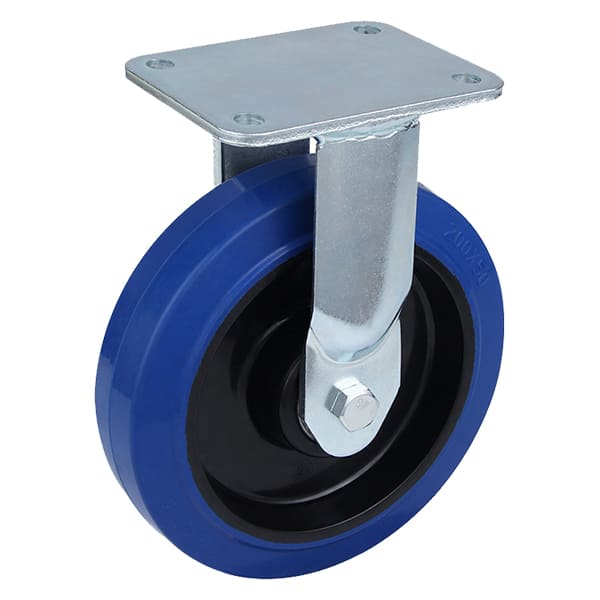

Description
Housing
pressed steel Fixed fork , zinc-plated,
Wheel
black polyamide wheel centre shore a 68+5 blue elastic rubber tread, two ball bearings
Applicable Terrain
Tile Floor
Resin Cement Floor
Asphalt Floor
Not Paved
Expanded Metal
Floor With Chips
