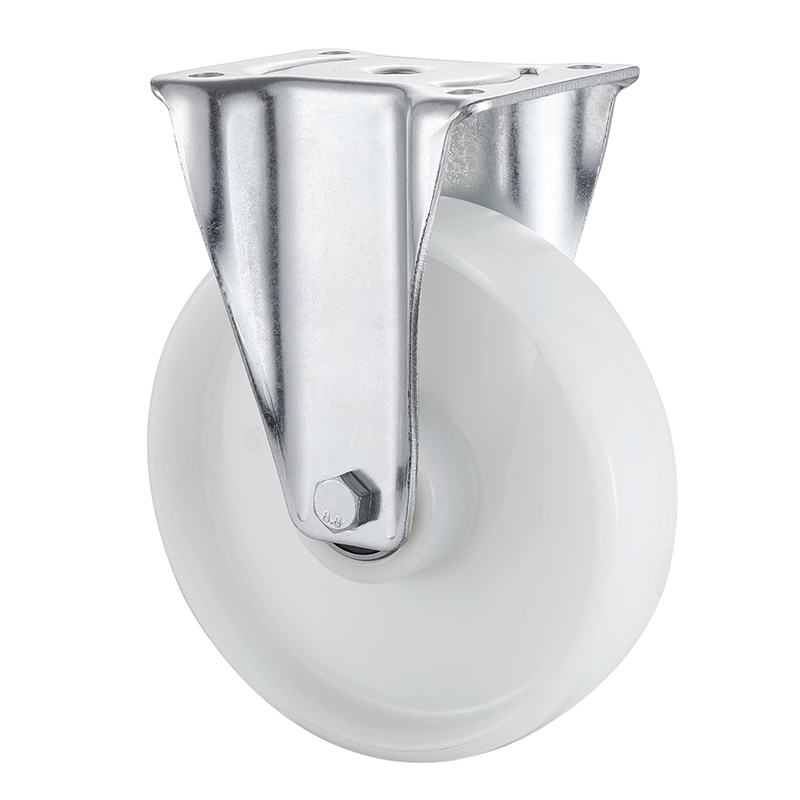

Top Heavy Weight White Nylon Fixed Castor Wheels Supplier

Castor Specifications

Slide to the right to view all castor specifications

Castor Number	Wheel Diameter & Width of Tread ( mm )	Size of Plate ( mm )	Plate Hole Center ( mm )	Plate Hole ( mm )	Overall Height ( mm )	Load Capacity ( kg 4km/h )
03P1F100B38BPHDX	100x38	105x85	80x60	11x9	130	350
03P1F125B50BPHDX	125x50	135x114	105x80	13.5x11	178	660
03P1F150B50BPHDX	150x50	135x114	105x80	13.5x11	210	800
03P1F160B50BPHDX	160x50	135x114	105x80	13.5x11	215	800
03P1F200B50BPHDX	200x50	135x114	105x80	13.5x11	245	800
03P1F250B50BPHDX	250x50	135x114	105x80	13.5x11	297	1000

Castor Information

Wheel Tread Material

Nylon

Wheel Centre Material

Polyamide

Castor Housing

Fixed

Mounting Type

Top Plate

Castor Bearing

Double ball bearings

Temperature Range

-40 to +80°C

Hardness of Tread

75° Shore D

Threadguard

None

Color

White

Description

Fixed castors, housing made of heavy pressed steel, bright zinc plate, integral moulding. Castor wheel tread nylon, Shore D 75, temperature range -40°C to +80°C, double ball bearings, wheel diameter 100mm to 250mm, load capacity 350kg to 1000kg. Excellent reputation among European customers, excellent quality, outstanding.
