Taishan Heavy Duty Yellow Polyurethane Swivel Castor Wheels Maker

Castor Specifications

Slide to the right to view all castor specifications

Castor Number	Wheel Diameter & Width of Tread ( mm )	Size of Plate ( mm )	Plate Hole Center ( mm )	Plate Hole ( mm )	Overall Height ( mm )	Load Capacity ( kg 4km/h )
03P1F80E38JUADX	80x38	105x85	80x60	11x9	120	300
03P1F100E38JUADX	100x40	105x85	80x60	11x9	130	300
03P1F125E40JUADX	125x40	135x114	105x80	13.5x11	178	450
03P1F125E50JUADX	125x50	135x114	105x80	13.5x11	178	500
03P1F150E50JUADX	150x50	135x114	105x80	13.5x11	210	650
03P1F160E50JUADX	160x50	135x114	105x80	13.5x11	215	800
03P1F200E50JUADX	200x50	135x114	105x80	13.5x11	245	800
03P1F250E60JUADX	250x60	135x114	105x80	13.5x11	297	1000

Castor Information

Wheel Tread Material

Polyurethane

Wheel Centre Material

Aluminium

Castor Housing

Fixed

Mounting Type

Top Plate

Castor Bearing

Double ball bearings

Temperature Range

-20 to +60°C

Hardness of Tread

94° Shore A

Threadguard

None

Color

Yellow

Description

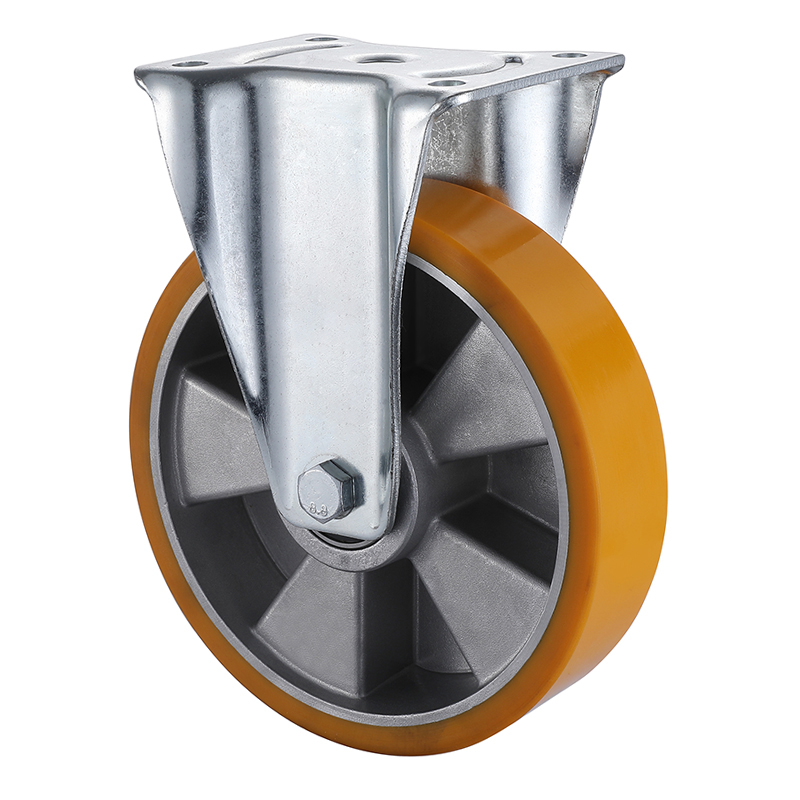

Fixed castors, housing made of heavy pressed steel, bright zinc plate, precision ball bearing swivel head sealed, wheel axle with nut, plate fitting, castor wheel tread yellow polyurethane, Shore A 85, double ball bearings, wheel center made of casting iron, wheel diameter 80mm to 250mm, load capacity 300kg to 1000kg. Our quality is creating an easier work-life for the user of the wheel.

Applicable Terrain
