Popular Heavy Weight Green Elastic Polyurethane Fixed Castors Wholesale

Castor Specifications

Slide to the right to view all castor specifications

Castor Number	Wheel Diameter & Width of Tread ( mm )	Size of Plate ( mm )	Plate Hole Center ( mm )	Plate Hole ( mm )	Overall Height ( mm )	Load Capacity ( kg 4km/h )
03P1F80H38JUHDX	80x38	105x85	80x60	11x9	120	200
03P1F100H38JUHDX	100x40	105x85	80x60	11x9	130	250
03P1F125H40JUHDX	125x40	135x114	105x80	13.5x11	178	300
03P1F125H50JUHDX	125x50	135x114	105x80	13.5x11	178	320
03P1F150H50JUHDX	150x50	135x114	105x80	13.5x11	210	400
03P1F160H50JUHDX	160x50	135x114	105x80	13.5x11	215	440
03P1F180H50JUHDX	180x50	135x114	105x80	13.5x11	240	500
03P1F200H50JUHDX	200x50	135x114	105x80	13.5x11	245	560
03P1F250H50JUHDX	250x50	135x114	105x80	13.5x11	297	640

Castor Information

Wheel Tread Material

Polyurethane

Wheel Centre Material

Aluminium

Castor Housing

Fixed

Mounting Type

Top Plate

Castor Bearing

Double ball bearings

Temperature Range

-20 to +60°C

Hardness of Tread

85° Shore A

Threadguard

None

Color

Green

Description

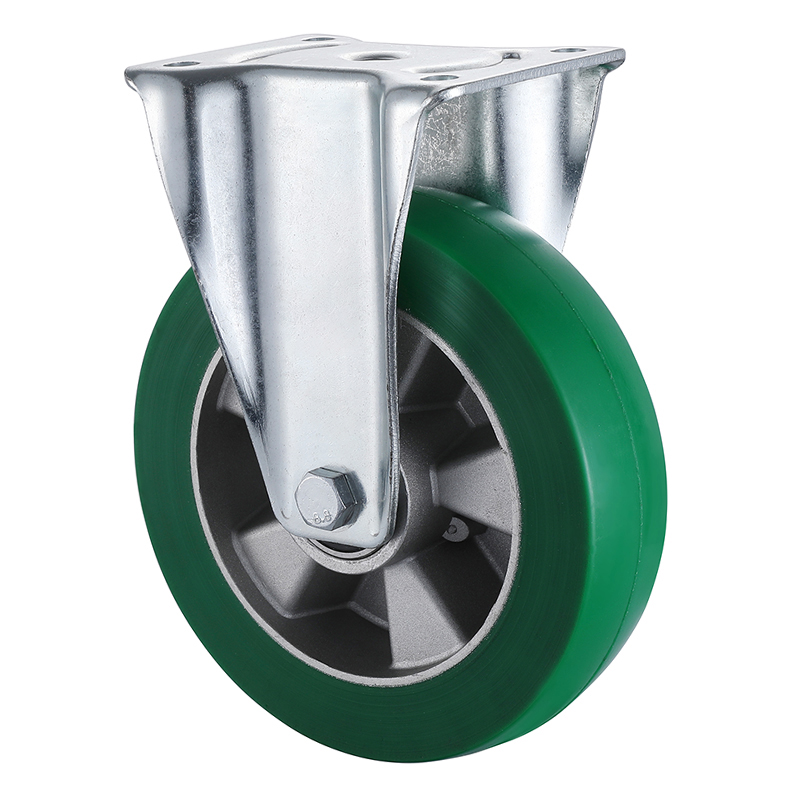

Fixed castors, housing made of heavy pressed steel, bright zinc plate, precision ball bearing swivel head sealed, wheel axle with nut, plate fitting, castor wheel tread polyurethane, Shore A 85, double ball bearings, wheel center made of nylon, wheel diameter 80mm to 200mm, load capacity 200kg to 640kg. Our quality is creating an easier work-life for the user of the wheel.

Applicable Terrain
