Load capacity 300-1500kg, suitable for heavy equipment.
Multiple sizes, ideal for a variety of industrial applications.
Diameter 75-125mm, suitable for indoor smooth floor.
Aceitamos todos os desafios e as suas necessidades são a nossa principal prioridade.
Large size 260mm, load capacity 150kg, suitable for outdoor cart.
Specially designed for shopping carts with multiple braking options.
Specially designed for hot environment applications up to 250°C.
Resistant to most chemicals, oils, greases, solvents and cleaning.
Wheel Tread
Elastic rubber
Temperature
-20 to +80°C
Standard
EN 12532
Hardness of Tread
68°+5 Shore A
Castor Description

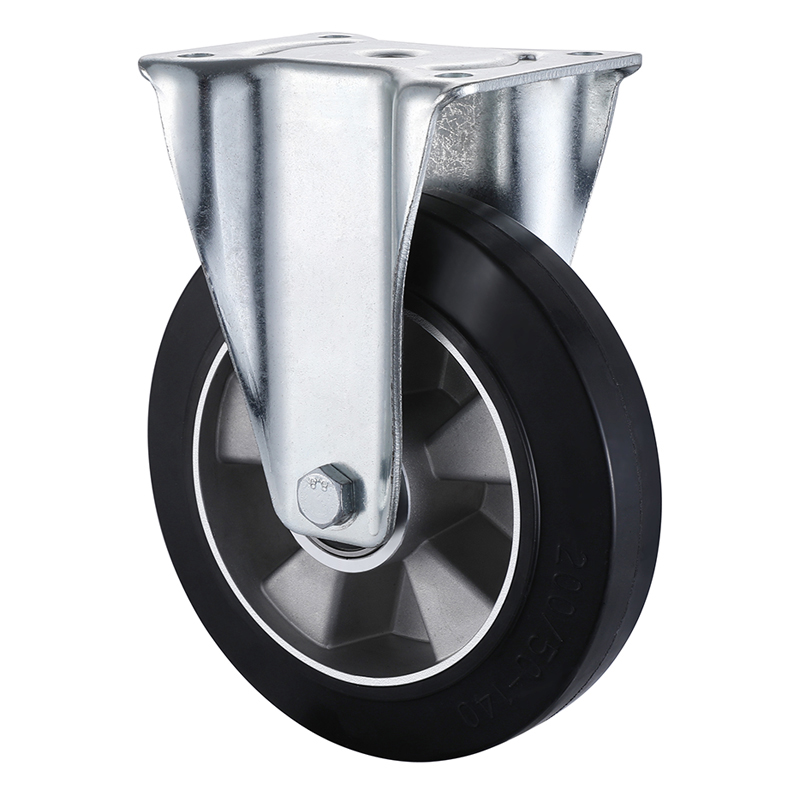

Fixed castor, housing made of heavy pressed steel, bright zinc plate, castor wheel tread elastic rubber, shore A 68+5, wheel center made of aluminum, double ball bearings, wheel diameter 80mm to 250mm, load capacity 105kg to 550kg. Applications: Industrial carts, material handling in factories, waste containers, transport containers, metal working and chemical companies, medium load roll containers, tool trolleys, warehouse carts.
You can use the button on the right to contact us for a quote at a good price.Or discuss your needs.
Swipe right to see the full table
| Castor Number |  Bearing Type |   Wheel Diameter & Width of Tread ( mm ) |  Size of Plate ( mm ) |  Plate Hole Center ( mm ) |  Plate Hole ( mm ) |  Overall Height ( mm ) |  Load Capacity ( kg 4km/h ) |
|---|---|---|---|---|---|---|---|
| 03P1F80C38JEADX |  | 80x38 | 105x85 | 80x60 | 11x9 | 120 | 105 |
| 03P1F100C40JEADX | | 100x40 | 105x85 | 80x60 | 11x9 | 130 | 170 |
| 03P1F125C50JEADX | | 125x50 | 135x114 | 105x80 | 13.5x11 | 178 | 230 |
| 03P1F150C50JEADX | | 150x50 | 135x114 | 105x80 | 13.5x11 | 210 | 280 |
| 03P1F160C50JEADX | | 160x50 | 135x114 | 105x80 | 13.5x11 | 215 | 300 |
| 03P1F200C50JEADX | | 200x50 | 135x114 | 105x80 | 13.5x11 | 245 | 400 |
| 03P1F250C50JEADX | | 250x50 | 135x114 | 105x80 | 13.5x11 | 297 | 550 |
Tile Floor
Resin Cement Floor
Asphalt Floor
Not Paved
Expanded Metal
Floor With Chips
