Excellent Quality Heavy Weight White Nylon Fixed Castor Wheels From China

Castor Specifications

Slide to the right to view all castor specifications

Castor Number	Wheel Diameter & Width of Tread ( mm )	Size of Plate ( mm )	Plate Hole Center ( mm )	Plate Hole ( mm )	Overall Height ( mm )	Load Capacity ( kg 4km/h )
23P1F125B50BPHDX	125x50	135x114	105x80	13.5x11	170	700
23P1F150B50BPHDX	150x50	135x114	105x80	13.5x11	200	800
23P1F160B50BPHDX	160x50	135x114	105x80	13.5x11	205	850
23P1F200B50BPHDX	200x50	135x114	105x80	13.5x11	245	1000
23P1F250B50BPHDX	250x50	135x114	105x80	13.5x11	305	1500

Castor Information

Wheel Tread Material

Nylon

Wheel Centre Material

Polyamide

Castor Housing

Fixed

Mounting Type

Top Plate

Castor Bearing

Double ball bearings

Temperature Range

-40 to +80°C

Hardness of Tread

75° Shore D

Threadguard

None

Color

White

Description

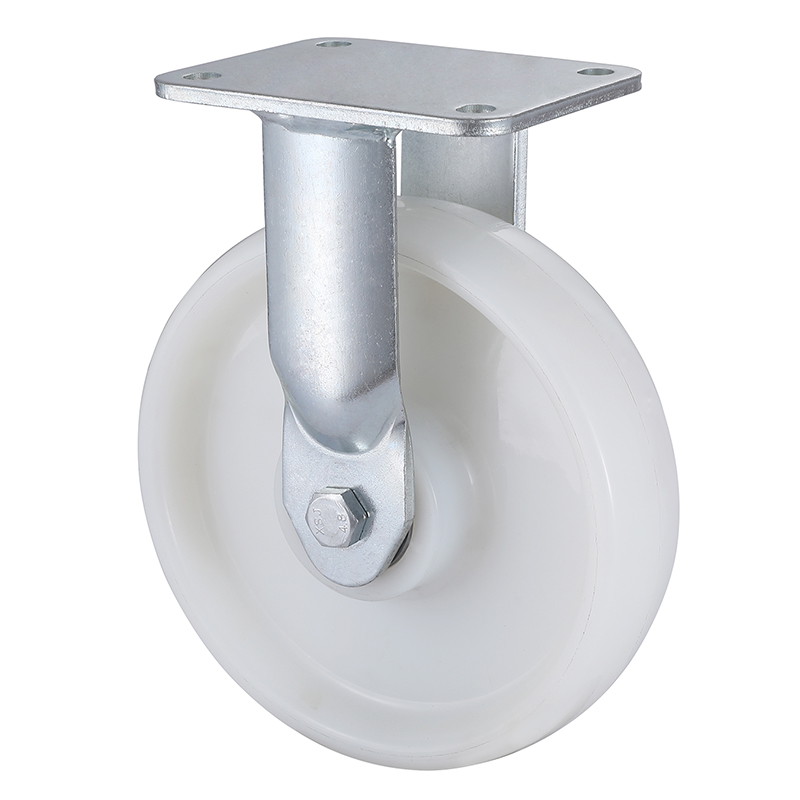

Fixed castors, housing made of heavy pressed steel, bright zinc plate, integral moulding. Castor wheel tread nylon, Shore D 75, temperature range -40°C to +80°C, double ball bearings, wheel diameter 125mm to 250mm, load capacity 700kg to 1500kg. These industrial castors are durable and designed for use in the most demanding environments.

Applicable Terrain
