Excellent Quality Heavy Weight Green Elastic Polyurethane Fixed Castors from Leading Supplier

Castor Specifications

Slide to the right to view all castor specifications

Castor Number	Wheel Diameter & Width of Tread ( mm )	Size of Plate ( mm )	Plate Hole Center ( mm )	Plate Hole ( mm )	Overall Height ( mm )	Load Capacity ( kg 4km/h )
23P1F125H50JUHDX	125x50	135x114	105x80	13.5x11	170	320
23P1F150H50JUHDX	150x50	135x114	105x80	13.5x11	200	400
23P1F160H50JUHDX	160x50	135x114	105x80	13.5x11	205	440
23P1F200H50JUHDX	200x50	135x114	105x80	13.5x11	245	560
23P1F250H50JUHDX	250x50	135x114	105x80	13.5x11	305	640

Castor Information

Wheel Tread Material

Polyurethane

Wheel Centre Material

Aluminium

Castor Housing

Fixed

Mounting Type

Top Plate

Castor Bearing

Double ball bearings

Temperature Range

-20 to +60°C

Hardness of Tread

85° Shore A

Threadguard

None

Color

Green

Description

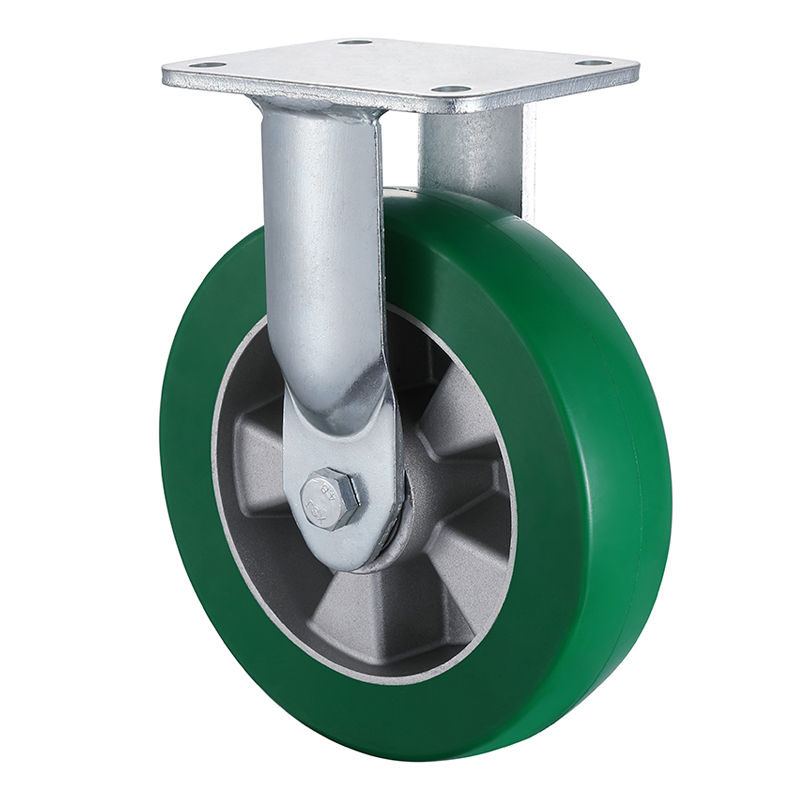

Fixed castors, housing made of heavy pressed steel, bright zinc plate, precision ball bearing swivel head sealed, wheel axle with nut, plate fitting, castor wheel tread polyurethane, Shore A 94, double ball bearings, wheel center made of aluminum, wheel diameter 125mm to 250mm, load capacity 320kg to 640kg. This heavy duty castor is perfect for mounting on high duty carts or equipment, industrial trolleys, material handling carts, shipping containers, metalworking equipment, tool carts, warehouse trolleys, contact a sales manager right away for a discounted price.
