Excellent quality Heavy Duty Polyurethane Fixed Castors Wholesale

Heavy Duty Fixed Castors Series

You can use the button on the right to contact us for a quote at a good price.Or discuss your needs.

Excellent quality Heavy Duty Polyurethane Fixed Castors Wholesale

You can use the button on the right to contact us for a quote at a good price.Or discuss your needs.

Castor Specifications

Slide to the right to view all castor specifications

Castor
Number
wheel bearing

Bearing Type

size-diameter.jpg size-tread-width.jpg

Wheel Diameter & Width of Tread

( mm )


Size of Plate

( mm )


Plate Hole Center

( mm )


Plate Hole

( mm )


Overall Height

( mm )


Load Capacity

( kg 4km/h )

03P1F80D38AUMRXcastors roller bearing80x38105x8580x6011x9120180
03P1F100D40AUMRXcastors roller bearing100x40105x8580x6011x9130300
03P1F125D40AUMRXcastors roller bearing125x40135x114105x8013.5x11178350
03P1F160D45AUMRXcastors roller bearing160x50135x114105x8013.5x11215550
03P1F200D50AUMRXcastors roller bearing200x50135x114105x8013.5x11245800

Castor Information

Wheel Tread Material

Polyurethane

Wheel Centre Material

Polyamide

Castor Housing

Fixed

Mounting Type

Top Plate

Castor Bearing

Double ball bearings

Temperature Range

-40 to +80°C

Hardness of Tread

92°+3 Shore A

Threadguard

None

Color

Grey

Description

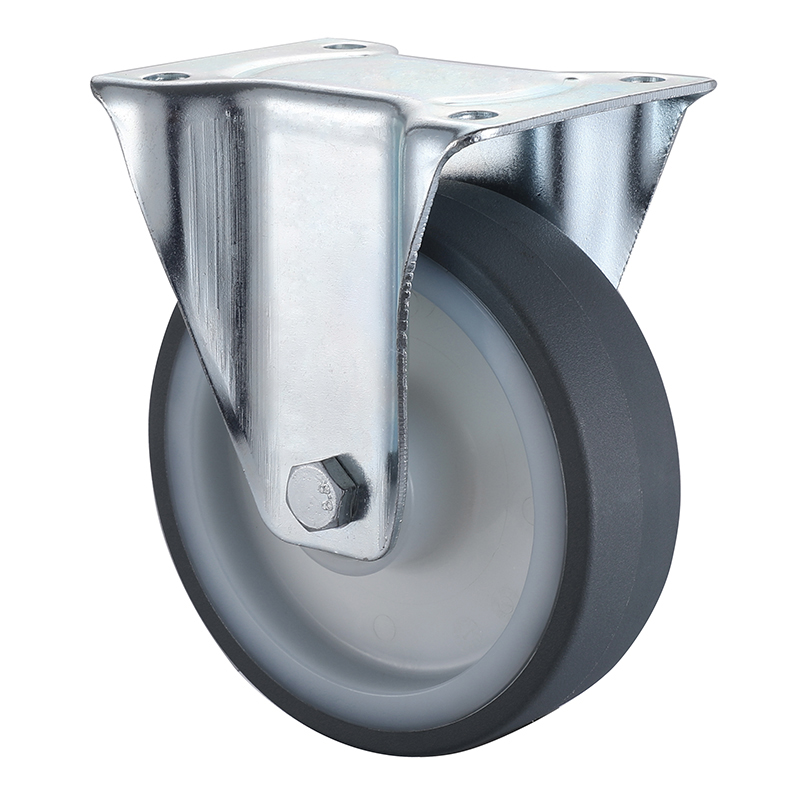

Fixed castors, housing made of heavy pressed steel,  bright zinc plate,  precision ball bearing swivel head sealed,  wheel axle with nut,  plate fitting, castor wheel tread polyurethane, Shore A 85, double ball bearings, wheel center made of nylon, wheel diameter 80mm to 200mm, load capacity 180kg to 800kg. These industrial castors are durable and designed for use in the most demanding environments.

Applicable Terrain

Tile Floor

Tile Floor

Resin Cement Floor

Resin Cement Floor

Asphalt Floor

Asphalt Floor
