Best Heavy Weight White Casting Nylon Fixed Castors from China Manufacturer

Castor Specifications

Slide to the right to view all castor specifications

Castor Number	Wheel Diameter & Width of Tread ( mm )	Size of Plate ( mm )	Plate Hole Center ( mm )	Plate Hole ( mm )	Overall Height ( mm )	Load Capacity ( kg 4km/h )
23P1F100B50BPCDX	100x50	135x114	105x80	13.5x11	148	1400
23P1F125B50BPCDX	125x50	135x114	105x80	13.5x11	170	2000
23P1F150B50BPCDX	150x50	135x114	105x80	13.5x11	200	2000
23P1F160B50BPCDX	160x50	135x114	105x80	13.5x11	205	2000
23P1F200B50BPCDX	200x50	135x114	105x80	13.5x11	245	2000
23P1F250B50BPCDX	250x50	135x114	105x80	13.5x11	305	2000

Castor Information

Wheel Tread Material

Nylon

Wheel Centre Material

Polyamide

Castor Housing

Fixed

Mounting Type

Top Plate

Castor Bearing

Double ball bearings

Temperature Range

-40 to +80°C

Hardness of Tread

75° Shore D

Threadguard

None

Color

White

Description

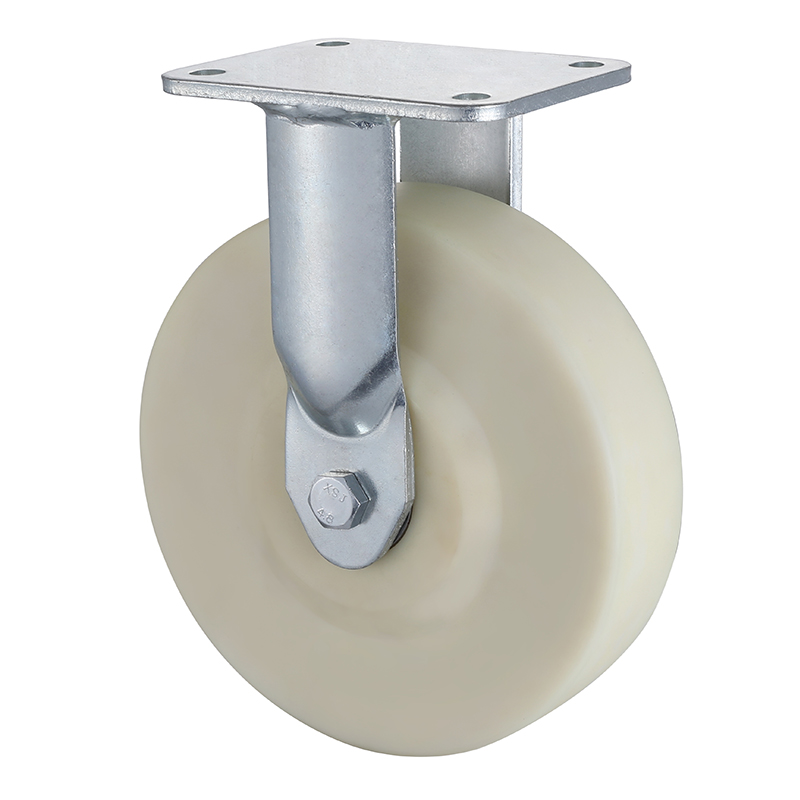

Fixed castors, housing made of heavy pressed steel, bright zinc plate, integral moulding. Castor wheel tread casting nylon, Shore D 75, temperature range -40°C to +80°C, double ball bearings, wheel diameter 100mm to 250mm, load capacity 1400kg to 2000kg. This heavy duty castor is perfect for mounting on high duty carts or equipment, industrial trolleys, material handling carts, shipping containers, metalworking equipment, tool carts, warehouse trolleys, contact a sales manager right away for a discounted price.

Applicable Terrain
