Castor Specifications
Slide to the right to view all castor specifications
Castor Number | Bearing Type | Wheel Diameter & Width of Tread ( mm ) | Size of Plate ( mm ) | Plate Hole Center ( mm ) | Plate Hole ( mm ) | Overall Height ( mm ) | Load Capacity ( kg 4km/h ) |
---|---|---|---|---|---|---|---|
23P1F125C50JEADX | 125x50 | 135x110 | 105x80 | 13.5x11 | 170 | 230 | |
23P1F150C50JEADX | 150x50 | 135x110 | 105x80 | 13.5x11 | 200 | 280 | |
23P1F160C50JEADX | 160x50 | 135x110 | 105x80 | 13.5x11 | 205 | 300 | |
23P1F200C50JEADX | 200x50 | 135x110 | 105x80 | 13.5x11 | 245 | 400 | |
23P1F250C50JEADX | 250x50 | 135x110 | 105x80 | 13.5x11 | 305 | 550 |
Castor Information
Wheel Tread Material
Elastic rubber
Wheel Centre Material
Aluminium
Castor Housing
Fixed
Mounting Type
Top Plate
Castor Bearing
Double ball bearings
Temperature Range
-20 to +80°C
Hardness of Tread
68°+5 Shore A
Threadguard
None
Color
Black
Description

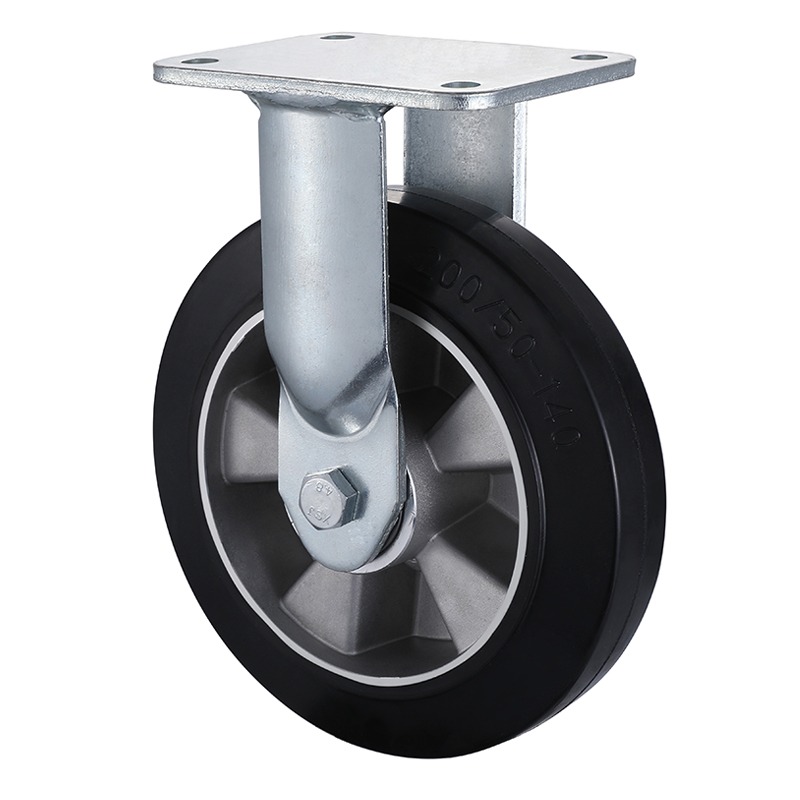

Fixed castor, housing made of heavy pressed steel, bright zinc plate, castor wheel tread elastic rubber, shore A 68+5, wheel center made of aluminum, double ball bearings, wheel diameter 80mm to 200mm, load capacity 230kg to 550kg. Applications: Industrial carts, material handling in factories, waste containers, transport containers, metal working and chemical companies, medium load roll containers, tool trolleys, warehouse carts.
Applicable Terrain
Tile Floor
Resin Cement Floor
Asphalt Floor
Not Paved
Expanded Metal
Floor With Chips
