Castor Specifications
Slide to the right to view all castor specifications
| Castor Number |  Wheel Diameter ( mm ) |  Tread of Width ( mm ) |  Size of Plate ( mm ) |  Plate Hole Center ( mm ) |  Plate Hole ( mm ) |  Offset ( mm ) |  Overall Height ( mm ) |  Load Capacity ( kg ) |
|---|---|---|---|---|---|---|---|---|
| 03P1DB125K50JUADX6020 | 125 | 50 | 135x110 | 105x80 | 13.5x11 | 50 | 178 | 450 |
| 03P1DB150K50JUADX6020 | 150 | 50 | 135x110 | 105x80 | 13.5x11 | 53 | 210 | 550 |
| 03P1DB160K50JUADX6020 | 160 | 50 | 135x110 | 105x80 | 13.5x11 | 53 | 215 | 600 |
| 03P1DB200K50JUADX6020 | 200 | 50 | 135x110 | 105x80 | 13.5x11 | 55 | 245 | 800 |
Castor Information
Wheel Tread Material
Polyurethane
Wheel Centre Material
Aluminium
Castor Housing
Directional Lock
Mounting Type
Top Plate
Castor Bearing
Double ball bearings
Temperature Range
-20 to +60°C
Hardness of Tread
94° Shore A
Threadguard
None
Color
Brwon

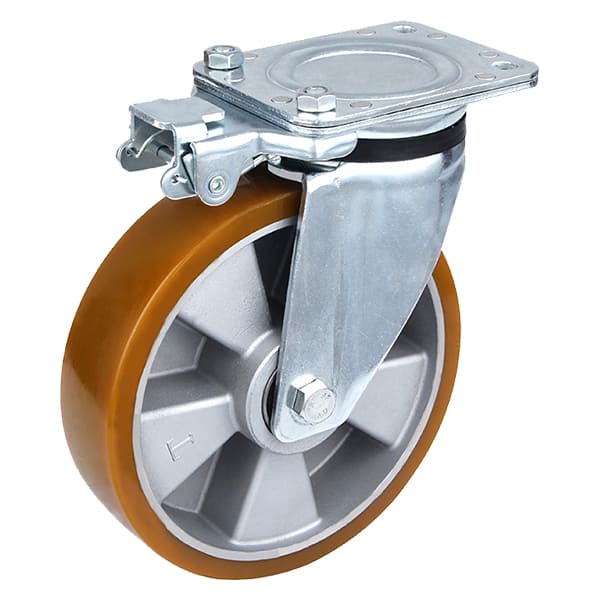

Description
Housing
pressed steel fork,zinc-plated hardened and sealed double ball race without central king pin
Wheel
silvery casting-aluminium wheel centre shore a 92 brwon polyurethane tread, two ball bearings
Applicable Terrain
Tile Floor
Resin Cement Floor
