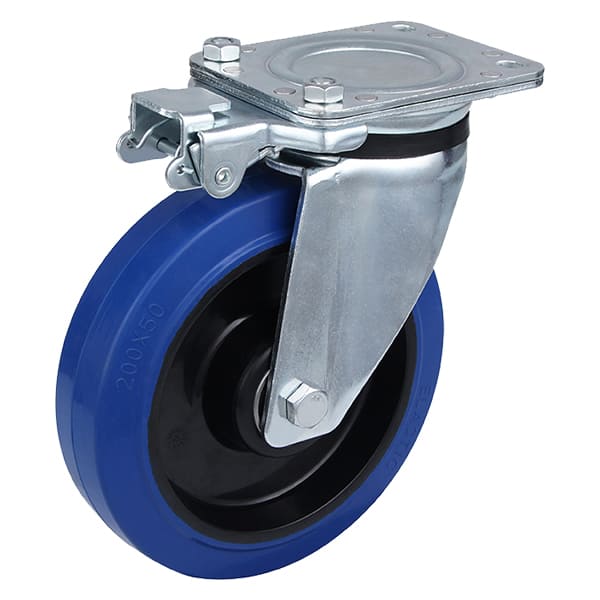

Heavy Duty Elastic Rubber Castor Wheels with Directional Lock

Heavy Duty Directional Locked Castors

You can use the button on the right to contact us for a quote at a good price.Or discuss your needs.

Heavy Duty Elastic Rubber Castor Wheels with Directional Lock

You can use the button on the right to contact us for a quote at a good price.Or discuss your needs.

Castor Specifications

Slide to the right to view all castor specifications

Castor
Number

Wheel Diameter

( mm )


Tread of Width

( mm )


Size of Plate

( mm )


Plate Hole Center

( mm )


Plate Hole

( mm )


Offset

( mm )


Overall Height

( mm )


Load Capacity

( kg )

03P1DB125A50CEPDX602012550135X110105X8013.5X1150178250
03P1DB150A50CEPDX602015050135X110105X8013.5X1153210350
03P1DB160A50CEPDX602016050135X110105X8013.5X1153215400
03P1DB200A50CEPDX602020050135x110105x8013.5x1155245500

Castor Information

Wheel Tread Material

Elastic rubber

Wheel Centre Material

Polyamide

Castor Housing

Directional Lock

Mounting Type

Top Plate

Castor Bearing

Double ball bearings

Temperature Range

-20 to +60°C

Hardness of Tread

68°+5 Shore A

Threadguard

None

Color

Blue

Description

Housing

pressed steel fork, zinc-plated hardened and sealed double ball race without central king pin


Wheel

black polyamide wheel centre shore a 68+5 blue elastic rubber tread, two ball bearings



Applicable Terrain

Tile Floor

Tile Floor

Resin Cement Floor

Resin Cement Floor

Asphalt Floor

Asphalt Floor

Not Paved

Not Paved

Expanded Metal

Expanded Metal

Floor With Chips

Floor With Chips
