Castor Specifications
Slide to the right to view all castor specifications
| Castor Number |  Wheel Diameter ( mm ) |  Tread of Width ( mm ) |  Size of Plate ( mm ) |  Plate Hole Center ( mm ) |  Plate Hole ( mm ) |  Offset ( mm ) |  Overall Height ( mm ) |  Load Capacity ( kg ) |
|---|---|---|---|---|---|---|---|---|
| 23P1DB100B50BPADX6020 | 100 | 50 | 135x110 | 80x60 | 13.5x11 | 42 | 148 | 1500 |
| 23P1DB125B50BPADX6020 | 125 | 50 | 135x110 | 80x60 | 13.5x11 | 50 | 170 | 1500 |
| 23P1DB150B50BPADX6020 | 150 | 50 | 135x110 | 105x80 | 13.5x11 | 57 | 200 | 1500 |
| 23P1DB160B50BPADX6020 | 160 | 50 | 135x110 | 105x80 | 13.5x11 | 57 | 205 | 1500 |
| 23P1DB200B50BPADX6020 | 200 | 50 | 135x110 | 105x80 | 13.5x11 | 65 | 245 | 1500 |
| 23P1DB200B50BPADX6020 | 250 | 50 | 135x110 | 105x80 | 13.5x11 | 80 | 305 | 1500 |
Castor Information
Wheel Tread Material
Polyamide
Wheel Centre Material
Polyamide
Castor Housing
Directional Lock
Mounting Type
Top Plate
Castor Bearing
Double ball bearings
Temperature Range
-20 to +60°C
Hardness of Tread
92°+3 Shore A
Threadguard
None
Color
White
Description

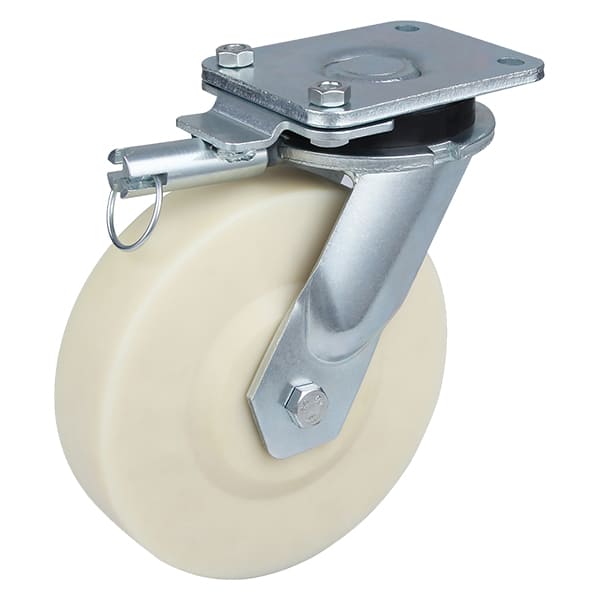

Housing
swivel head with tapered roller bearing and axial ball bearing, welded steel fork
Wheel
white injection polyamide, two ball bearings
Applicable Terrain
Tile Floor
Resin Cement Floor
