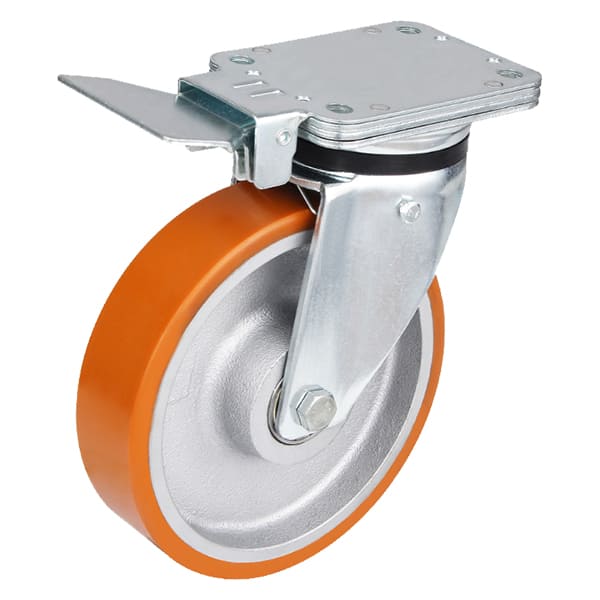

Heavy Duty Casting Polyurethane Central Locking Castors for Equipment

Heavy Duty Central Brakes Castors

You can use the button on the right to contact us for a quote at a good price.Or discuss your needs.

Heavy Duty Casting Polyurethane Central Locking Castors for Equipment

You can use the button on the right to contact us for a quote at a good price.Or discuss your needs.

Castor Specifications

Slide to the right to view all castor specifications

Castor
Number

Wheel Diameter

( mm )


Tread of Width

( mm )


Size of Plate

( mm )


Plate Hole Center

( mm )


Plate Hole

( mm )


Offset

( mm )


Swivel Radius

( mm )


Overall Height

( mm )


Load Capacity

( kg )

03P1CB125K50CUIDX602012550135x110105x8013.5x1150155.65178450
03P1CB150K50CUIDX602015050135x110105x8013.5x1153155.65210800
03P1CB160K50CUIDX602016050135x110105x8013.5x1153155.65215800
03P1CB200K50CUIDX602020050135x110105x8013.5x1155155.65255800


Castor Information

Wheel Tread Material

Polyurethane

Wheel Centre Material

Polyamide

Castor Housing

Central Brake

Mounting Type

Top Plate

Castor Bearing

Double ball bearings

Temperature Range

-20 to +60°C

Hardness of Tread

94° Shore A

Threadguard

None

Color

Brwon

Description

Housing

pressed steel fork, zinc-plated hardened and sealed double ball race without central king pin


Wheel

casting-iron wheel centre 94 shore a brwon polyurethane tread, two ball bearings


Applicable Terrain

Tile Floor

Tile Floor

Resin Cement Floor

Resin Cement Floor
