Best Heavy Weight Injection Polyurethane Central Brakes Castor Wheels

Heavy Duty Central Brakes Castors

You can use the button on the right to contact us for a quote at a good price.Or discuss your needs.

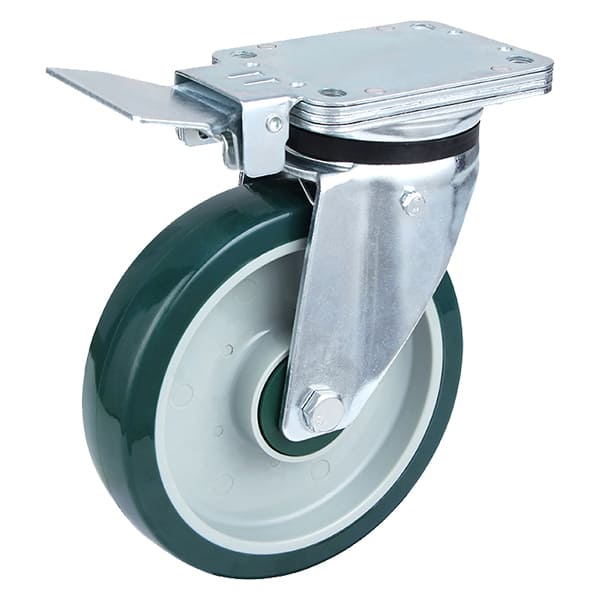

Best Heavy Weight Injection Polyurethane Central Brakes Castor Wheels

You can use the button on the right to contact us for a quote at a good price.Or discuss your needs.

Castor Specifications

Slide to the right to view all castor specifications

Castor
Number

Wheel Diameter

( mm )


Tread of Width

( mm )


Size of Plate

( mm )


Plate Hole Center

( mm )


Plate Hole

( mm )


Offset

( mm )


Swivel Radius

( mm )


Overall Height

( mm )


Load Capacity

( kg )

03P1CB150H40DUPDA621215040135x110105x8013.5x1153155.65210300
03P1CB160H40DUPDA621216040135x110105x8013.5x1153155.65215350
03P1CB200H50DUPDA621220050135x110105x8013.5x1155155.65255500

Castor Information

Wheel Tread Material

Polyurethane

Wheel Centre Material

Polyamide

Castor Housing

Central Brake

Mounting Type

Top Plate

Castor Bearing

Double ball bearings

Temperature Range

-40 to +80°C

Hardness of Tread

92°+3 Shore A

Threadguard

Small plastic

Color

Green

Description

Housing

pressed steel fork, zinc-plated hardened and sealed double ball race without central king pin


Wheel

grey polyamide wheel centre shore a 92 green injection polyurethane tread, two ball bearings,green samll plastic thread guards

Applicable Terrain

Tile Floor

Tile Floor

Resin Cement Floor

Resin Cement Floor
