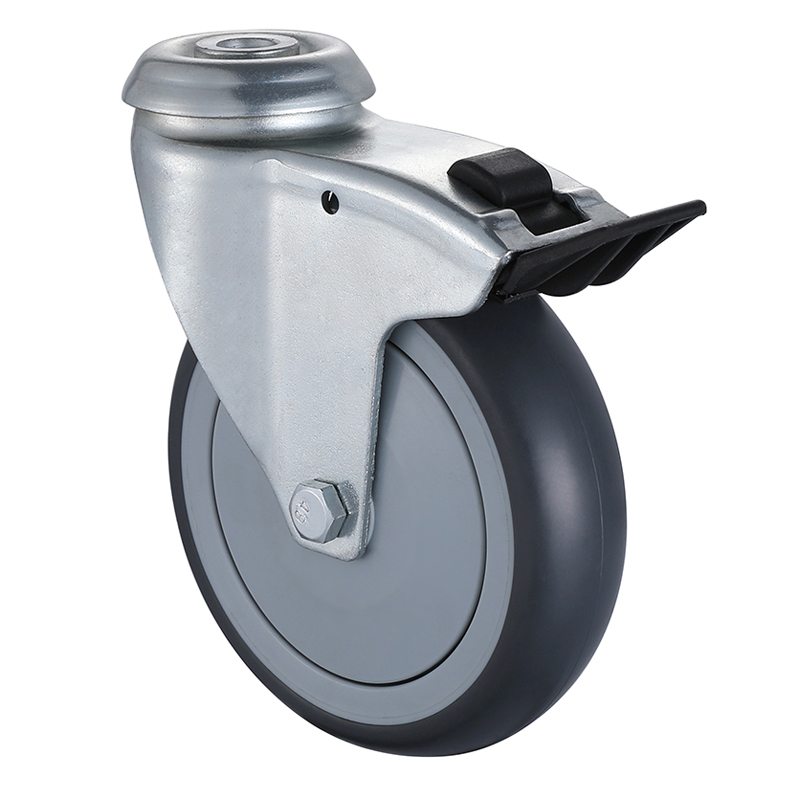

Grey Bolt Hole Thermplastic Rubber Institutional Castors with Total Brake with Threadguard

Castor Specifications

Slide to the right to view all castor specifications

Castor Number	Wheel Diameter & Width of Tread ( mm )	Offset ( mm )	Centre Hole ( mm )	Overall Height ( mm )	Load Capacity ( kg 4km/h )
18H1RB75D30DTPBB	75x30	30.5	Φ13	100.5	75
18H1RB100D32DTPBB	100x32	40	Φ13	134.5	100
18H1RB125D32DTPBB	125x32	43	Φ13	159.5	100

Castor
Number

Bearing Type

Wheel Diameter & Width of Tread

( mm )

Offset

( mm )

Centre Hole

( mm )

Overall Height

( mm )

Load Capacity

( kg 4km/h )

18H1RB75D30DTPBB

75x30

30.5

Φ13

100.5

18H1RB100D32DTPBB

100x32

Φ13

134.5

100

18H1RB125D32DTPBB

125x32

Φ13

159.5

100

Castor Information

Wheel Tread Material

Thermoplastic rubber

Wheel Centre Material

Polypropylene

Castor Housing

Bolt Hole and Total Brake

Mounting Type

Bolt Hole

Castor Bearing

Single ball bearing

Temperature Range

-20 to +60°C

Hardness of Tread

85° Shore A

Threadguard

None

Color

Grey

Description

Pressed steel rotary fork, galvanized double ball seat ring, sealed in the sliding head, can rotate freely 360 degrees and Total Brake, Shore A85, thermoplastic rubber wheel surface, black polypropylene wheel core, roller bearings, suitable for smooth terrain or indoor terrain, each user and application has different needs. Let us know how we can help you become a satisfied customer.

Taishan Castor Manufacturer, the leading manufacturer of TPR institutional castors in the industry, obtains the best price from the factory. There is no trader, and the price is more favorable in large quantities.

Applicable Terrain
