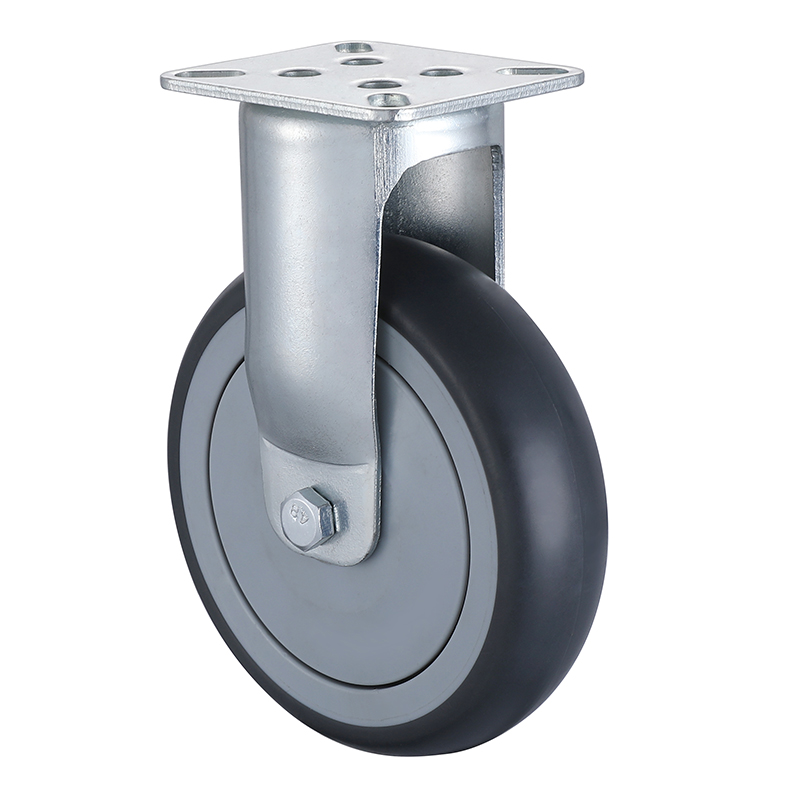

Fixed Grey Thermoplastic Rubber Institutional Castors with Threadguard

Castor Specifications

Slide to the right to view all castor specifications

Castor Number	Wheel Diameter & Width of Tread ( mm )	Size of Plate ( mm )	Plate Hole Center ( mm )	Plate Hole ( mm )	Overall Height ( mm )	Load Capacity ( kg 4km/h )
18P1F75D30DTPBB	75x30	77x67	55.7x46.5	8.5	103	75
18P1F75D30DTPBB	75x30	108x80	80x60	9	103	75
18P1F100D32DTPBB	100x32	77x67	55.7x46.5	8.5	137	100
18P1F100D32DTPBB	100x32	108x80	80x60	9	137	100
18P1F125D32DTPBB	125x32	77x67	55.7x46.5	8.5	162	100
18P1F125D32DTPBB	125x32	108x80	80x60	9	162	100

Castor Information

Wheel Tread Material

Thermoplastic rubber

Wheel Centre Material

Polypropylene

Castor Housing

Fixed

Mounting Type

Top Plate

Castor Bearing

Single ball bearing

Temperature Range

-20 to +60°C

Hardness of Tread

85° Shore A

Threadguard

None

Color

Grey

Description

Pressed steel rotary fork, galvanized double ball seat ring, sealed in the sliding head, Shore A85, thermoplastic rubber wheel surface, black polypropylene wheel core, roller bearings, suitable for smooth terrain or indoor terrain, each user and application has different needs. Let us know how we can help you become a satisfied customer.

Taishan Castor Manufacturer, the leading manufacturer of TPR institutional castors in the industry, obtains the best price from the factory. There is no trader, and the price is more favorable in large quantities.

Applicable Terrain
